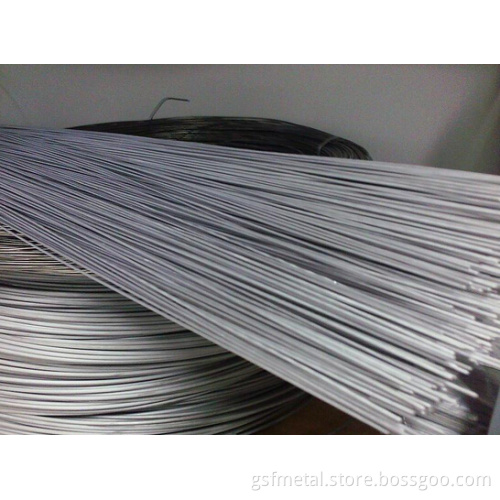

Grade 5 Straight Pure Titanium Wire for Industrial
- Payment Type:
- T/T, Western Union
- Incoterm:
- FOB
- Min. Order:
- 500 Kilogram
- Min. Order:
- 500 Kilogram
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenzhen |
|---|---|
| Productivity: | 1000 ton per month |
| Payment Type: | T/T,Western Union |
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air |
Quick Detail:
Standard we have: ASTM B348, ASTM B863, ASTM F136, ASTM F67
Material: GR1, GR2, GR3, GR4, GR5,GR7,GR9, GR12, GR23
Diameter: 1.0mm~6.0mm
Length: 1000mm or customers' requests
Surface: pickling surface, polished surface
Product introduction:
1. Product info:
|
Product Name |
Titanium wire, Titanium welding wire |
|
|
Available Sizes |
Diameter |
Shape |
|
1.0mm~6.0mm*1000mm |
In straight |
|
|
Titanium Grade |
Gr1,Gr2,Gr4,Gr5,Gr7,Gr9,Gr12 |
|
|
Standard |
ASTM B348, ASTM B863, ASTM F136, ASTM F67 |
|
|
Diameter Tolerance |
DIA(0.1mm ~ 1.0) |
DIA(1mm~7mm) |
|
+ or -0.01mm |
+/-0.01mm |
|
|
Surface Quality |
Pickling, polished |
|
2. Titanium Wires Dimension Tolerance:
|
Diameter |
0.1-0.3mm |
0.3-0.8mm |
0.8-2.0mm |
2.0-6.0mm |
|
Tolerance |
+/- 0.025 |
+/-0.04 |
+/-0.05 |
+/-0.10 |
|
Length |
200-500mm |
500-1000mm |
1000-2000mm |
&2000mm |
|
Tolerance |
+/-1.0 |
+/-1.5 |
+/-2.0 |
+/-2.5 |
3. Tensile strength:
|
grade |
Tensile strength(min) |
Yeild strength(min) |
Elongation (%) |
||
|
ksi |
MPa |
ksi |
MPa |
||
|
GR1 |
35 |
240 |
20 |
138 |
24 |
|
GR2 |
50 |
345 |
40 |
275 |
20 |
|
GR5 |
130 |
895 |
120 |
828 |
10 |
|
GR7 |
50 |
345 |
40 |
275 |
20 |
|
GR9 |
90 |
620 |
70 |
438 |
15 |
|
GR12 |
70 |
438 |
50 |
345 |
18 |
4. Chemical composition:
|
AWS A5.16 |
ASTM B 863 |
C |
O |
N |
H |
Fe |
Other |
|
|
|||||||
|
ERTi-1 |
Grade-1 |
0.03 |
0.03-0.10 |
0.012 |
0.005 |
0.08 |
|
|
ERTi-2 |
Grade-2 |
0.03 |
0.08-0.16 |
0.015 |
0.008 |
0.12 |
|
|
ERTi-3 |
Grade-3 |
0.03 |
0.13-0.20 |
0.02 |
0.008 |
0.16 |
|
|
ERTi-4 |
Grade-4 |
0.03 |
0.18-0.32 |
0.025 |
0.008 |
0.25 |
|
|
ERTi-5 |
Grade-5 |
0.05 |
0.12-0.20 |
0.03 |
0.015 |
0.22 |
Al 5.5-6.5 |
|
V 3.5-5.5 |
|||||||
|
ERTi-7 |
Grade-7 |
0.03 |
0.08-0.16 |
0.015 |
0.008 |
0.12 |
Pd 0.12-0.25 |
|
ERTi-9 |
Grade-9 |
0.03 |
0.08-0.16 |
0.022 |
0.008 |
0.25 |
|
Mechanical properties:
|
rade |
Tensil strength(min) |
Yeild strength(min) |
Elongation(%) |
||
|
ksi |
MPa |
ksi |
MPa |
||
|
1 |
35 |
240 |
20 |
138 |
24 |
|
2 |
50 |
345 |
40 |
275 |
20 |
|
3 |
65 |
450 |
55 |
380 |
18 |
|
5 |
130 |
895 |
120 |
828 |
10 |
|
7 |
50 |
345 |
40 |
275 |
20 |
|
9 |
90 |
620 |
70 |
438 |
15 |
|
12 |
70 |
438 |
50 |
345 |
18 |
Application
1. Heat exchanger / condenser
2. Automotive components
3. Power and chemical plant applications
4. Cooling system parts
5. Hydrocarbon refining processing
6. Consumer goods
7.Electro planting equipment
8. Precision instruments
9. ring
