P6 HD Advertising WIFI Full Color Digital LED Billboard FCC
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
P6 HD Advertising WIFI Full Color Digital LED Billboard FCC / ETL / TUV
Quick Viewing:
120 °Horizontal viewing angle and 120° vertical viewing angle;
Driving method is 1/8 can constant current;
MBI5041/MBI5024/JXI5020 of driving IC available;
With 85-264VAC large scale switching power supply, typical value: 110VAC/220VAC;
Maximum power consumption is less than 102.19W/sq.ft (1100W/㎡);
Led lamp lifespan is more than 100000 hours;
Less than 1mm module plainness;
More than 90% of pixel & module lightness uniformity;
Less than 1/ 10⁻⁴ of pixel out of control, dispersion state.
Detailed Description:

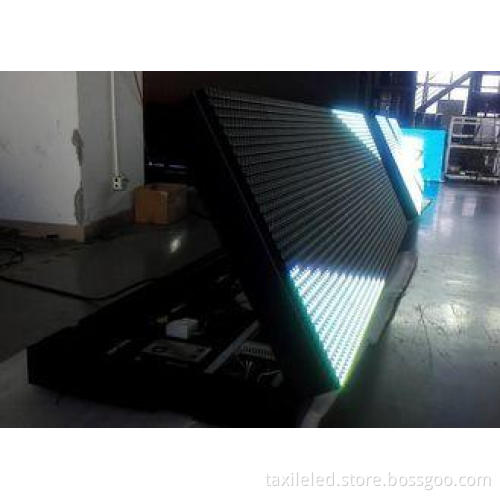

Front maintenance saves space instead of rear maintenance;
Easy to install, usually adopt for wall-mounted installation;
Energy-saving by using excellent driving IC and improved PCB design;
Suitable for almost all type of colors;
Cabinet size can be customized;
With front maintenance, usually one cabinet composes one display;
Easy install & maintenance;
Working lifespan is at least 100000 hours.
Popular Application:
Advertising media, sports stadiums, airport station integrated information dissemination, business establishments, and public square.
Specifications:
|
Item |
Technical Parameters |
|
Screen model |
OC-FA-P6SMD3535 |
|
Led encapsulation |
SMD3535 |
|
Led configuration |
1R1G1B |
|
Pixel pitch(mm/inch) |
6mm / 0.24 inch |
|
Red chip |
Wavelength range: 619-628nm, 5nm; |
|
Green chip |
Wavelength range: 461-470nm, 4nm; |
|
Blue chip |
Wavelength range: 522-531nm, 4nm; |
|
Resolution |
2580dots/sq.ft (27777dots/㎡) |
|
Maintenance |
Front-maintained |
|
Brightness: CD/sq.ft (CD/㎡) |
>511CD/sq.ft (5500 CD/㎡) |
|
Refreshing frequency: Hz |
>960 Hz |
|
Grey scale |
14bit |
|
Module pixel |
W 48 × H 48 dots |
|
Module size |
W 11.34 X H 11.34 inch (W 288 × H 288 mm) |
|
Viewing angle |
Horizontal: 120°, Vertical: 120° |
|
Cabinet material |
Aluminum/steel |
|
Lightness uniformity |
Pixel & module>90% |
|
Cabinet color |
Customized |
|
Driving method |
1/8 scan constant current |
|
Driving IC |
MBI5041/MBI5024/JXI5020 |
|
Cabinet size |
Cabinet size could be adjustable by demands |
|
Power supply |
85-264VAC, typical value: 110VAC/220VAC |
|
Max consumption |
Max.≤102.19W/sq.ft (1100W/㎡) |
|
Average consumption |
Ave.: 33.45-51.10w/sq.ft(Ave.:350-550w/㎡) |
|
Led life time |
≥100000hours |
|
Mean time to failure |
≥5000hours |
|
Module plainness |
≤1mm |
|
Pixel out of control |
less than 1/ 10⁻⁴, dispersion state |
|
Working temperature |
-30ºC to +60ºC |
|
Working humidity |
20% to 90% |
|
Waterproof IP |
lamp & top:IP65, other part:IP54 |
|
Protection function |
dampproof/dust-free/anti high temp/anti-thunder/ anti electromagnetic interference, etc |
|
Certificate |
CCC /CE/UL/Rohs/Tuv |
|
Hardware interface |
Standard PC network interface technology/U disc/3G |
|
Display mode |
24 bit true color |
|
Colors |
281 trillion colors |
|
Colour processing ability |
≥14bit |
|
Color temperature |
3000K ≤ TC ≤9000K, adjustable |
|
Brightness regulating degrees |
continuously adjustable step by step through the software |
|
Anty-Y correction curve |
Anti-γ correction system: 2.2-2.8 adjustable |
|
Image adjust |
White balance/contrasting / hue control/ Single point brightness adjustment |
|
Image processing |
mage noise reduction/ image enhancement/ image motion compensation/ Image color coordinate transformation processing/ Image passivation treatment |
|
Correction technology |
Yes |
|
Video mode |
AVI, WMV, MPG, MOV, DAT, VOB, MP4, FLV |
|
Controlling platform |
Windows, Apple |
