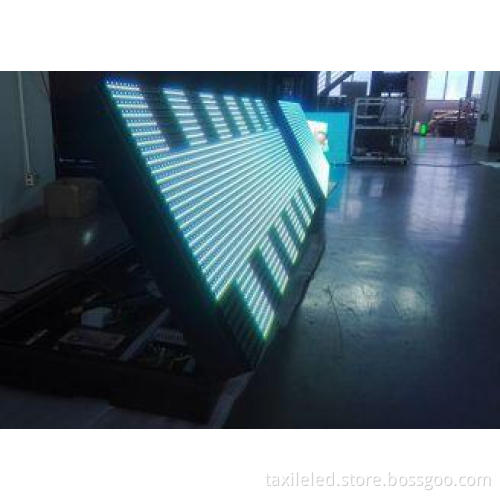

SMD High Definition Mobile Digital LED Billboard With Refresh Rate 2000Hz / s
Quick Viewing:
1) Maximum power consumption is less than 83.61W/sq.ft (900W/㎡);
2) Module pixel configuration of W 32 × H 16 dots;
3) Module size is W 10.08 X H 5.04 inch (W 256 × H 128 mm);
4) More than 90% of pixel & module lightness uniformity;
5) Less than 1/ 10⁻⁴ of pixel out of control, dispersion state;
6) More than 5000hours meant time to failure;
7) Cabinet size and color could be adjustable by demands;
8) -30ºC to +60ºC of working temperature;
9) With certificate of CCC /CE/UL/TUV.
Detailed Description:
With operating temperature between -30℃-60℃, LED display is able to be installed in any environments and our products even can be able to operate in coastal place with high temperature and high salt degree.
Feature Advantage
1. Suitable for almost all type of colors;
2. Cabinet size can be customized;
3. Easy install & maintenance;
4. Working lifespan is at least 100000 hours;
5. Front maintenance saves space instead of rear maintenance;
6. Easy to install, usually adopt for wall-mounted installation;
7. With front maintenance, usually one cabinet composes one display;
8. Energy-saving by using excellent driving IC and improved PCB design.
Popular Application:
This outdoor advertising LED billboards display would be installed for outdoor ads.
Specifications:
Item | Technical Parameters |
Screen model | OC-FA-P8DIP |
Led encapsulation | DIP246 |
Led configuration | 1R1G1B |
Pixel pitch(mm/inch) | 8mm / 0.31 inch |
Red chip | Wavelength range: 622-631nm, 5nm; |
Green chip | Wavelength range: 460-470nm, 4nm; |
Blue chip | Wavelength range: 521-530nm, 4nm; |
Resolution | 1452dots/sq.ft (15625dots/㎡) |
Maintenance | Front-maintained |
Brightness: CD/sq.ft (CD/㎡) | >603.87CD/sq.ft (6500 CD/㎡) |
Refreshing frequency: Hz | >960 Hz |
Grey scale | 14bit |
Module pixel | W 32 × H 16 dots |
Module size | W 10.8 X H 5.04 inch (W 256 × H 128 mm) |
Viewing angle | Horizontal: 110°, Vertical: 55° |
Cabinet material | Aluminum/steel |
Lightness uniformity | Pixel & module>90% |
Cabinet size | Cabinet size could be adjustable by demands. |
Cabinet color | Customized |
Driving method | 1/4 scan constant current |
Driving IC | MBI5041/MBI5024/JXI5020 |
Power supply | 85-264VAC, typical value: 110VAC/220VAC |
Max consumption | Max.≤83.61W/sq.ft (900W/㎡) |
Average consumption | Ave.: 30.67-41.81w/sq.ft(Ave.:330-450w/㎡) |
Led life time | ≥100000hours |
Mean time to failure | ≥5000hours |
Module plainness | ≤1mm |
Pixel out of control | less than 1/ 10⁻⁴, dispersion state |
Working temperature | -30ºC to +60ºC |
Working humidity | 20% to 90% |
Waterproof IP | lamp & top:IP65, other part:IP54 |
Protection function | dampproof/dust-free/anti high temp/anti-thunder/ anti electromagnetic interference, etc |
Certificate | CCC /CE/UL/Rohs/Tuv |
Hardware interface | Standard PC network interface technology/U disc/3G |
Display mode | 24 bit true color |
Colors | 281 trillion colors |
Colour processing ability | ≥14bit |
Color temperature | 3000K ≤ TC ≤9000K, adjustable |
Brightness regulating degrees | continuously adjustable step by step through the software |
Anty-Y correction curve | Anti-γ correction system: 2.2-2.8 adjustable |
Image adjust | White balance/contrasting / hue control/ Single point brightness adjustment |
Image processing | mage noise reduction/ image enhancement/ image motion compensation/ Image color coordinate transformation processing/ Image passivation treatment |
Correction technology | Yes |
Video mode | AVI, WMV, MPG, MOV, DAT, VOB, MP4, FLV |
Controlling platform | Windows, Apple IOS |
