PH5 Customized Custom LED Display Outdoor Usage HD with 465
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
PH5 Customized Custom LED Display Outdoor Usage HD with 465CD per sq. ft
Quick Viewing:
1. High definition with 0.20inch (5mm) pixel pitch, 3716 dots per square feet (40000 dots per square meter;
2. High brightness with 465CD per square feet (5000CD per square meter), could be seen in direct sunshine;
3.Standard PH5 module, W 32 x H 32 dots, W 6.3 x H 6.3 inch, 1/8 scanning, 12 modules on each sides, 24 modules in total;
4. W 192 x H 64 dots, W 37.80 x H 12.60 inch each sides.
Detailed Description:

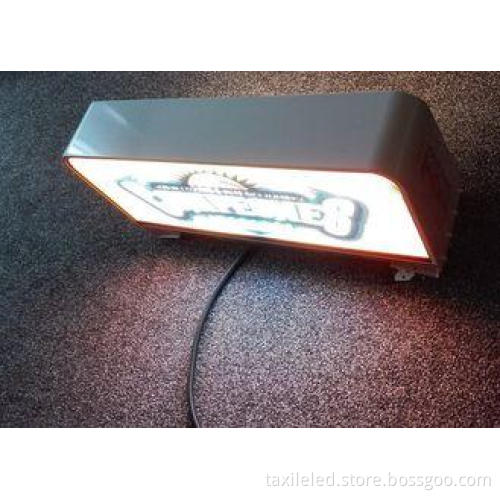

Our Taxi Led Display is suitable for outdoor usage, adopting aluminum sheet metal, and endowed with excellent rustproof effect by virtue of electrostatic spraying process.
The installation is very simple trough the use of two bars connectable like normal baggage bars. Power main cable connects directly to the car’s accumulator and a cigarette lighter plug inside the driver’s seat is used for controlling taxi led sign power on/off. You can also set the backlight on or off with a simple button. A control card and UMTS (Universal Mobile Telecommunications System) router could be integrated. The taxi led screen have a web-based controlling manage platform (works in browser without any installation) is included.
This LED screen cabinets are designed to be mounted on a taxi, adopting sheet metal fabrication, by multiple anti-rusting, spraying processes and high-temp baking procedure which ensure rustproof; protective cover is removable for easier maintenance; fasteners and mounting brackets ensure a fast assembly.
Popular Application:
Cab top advertising, Cab roof advertisement
Specifications:
|
Item |
Technical Parameters |
|
|
Screen model |
OC-MT-P5SMD2525 |
|
|
Red chip(wavelength range: 620-630nm, 5nm) |
Brightness range:500-900mcd |
|
|
Green chip(wavelength range: 460-470nm, 4nm) |
Brightness range: 1200-1500mcd |
|
|
Blue chip(Wavelength range: 520-530nm, 4nm) |
Brightness range: 300-450mcd |
|
|
module |
Led configuration |
SMD 3 IN 1: SMD2525/SMD3528 |
|
Pixel pitch (mm) |
5mm(0.2 inch) |
|
|
Module resolution (W X H) |
W 32 x H 32 dots |
|
|
Module dimension (W x H inch) |
W 6.3 x H 6.3 x D 0.67 inch (W 160 × H 160 x D17 mm) |
|
|
Cabinet |
Module quantity(W × H) |
W 6 × H 2, per side |
|
Cabinet resolution(W × H) |
W 192 × 64 dots, per side |
|
|
Cabinet dimension(W x H inch) |
W 37.80 x H 12.60 inch per side (W 960 x H 320 mm per side) |
|
|
Cabinet surface area(sq.ft) |
3.31 sq.ft / (0.31sq.m) per side |
|
|
Physical pixel density (dots/sq.ft) |
3716dots/sq.ft(40000dots/㎡) |
|
|
Brightness |
≥465CD/sq.ft (5000CD/㎡) |
|
|
Cabinet flatness(inch) |
≤0.08inch (0.2mm) |
|
|
Maintenance |
Back-maintained |
|
|
Cabinet material |
Aluminum |
|
|
Cabinet weight |
≤48.5lb (22kg) |
|
|
Optical parameters |
Single-point brightness correction |
Available |
|
Single-point color correction |
available |
|
|
Color temperature(K) |
3200—9300 adjustable |
|
|
Horizontal viewing angle |
120° |
|
|
Viewing angle (Vertical) |
120° |
|
|
Brightness Uniformity |
<3% |
|
|
Color uniformity |
≥97% |
|
|
Contrast ratio |
5000:1 |
|
|
Electrical parameters |
Max power consumption |
580W per unit of taxi led screen |
|
Average power consumption |
180-240W per unit of taxi screen |
|
|
Power supply |
DC9-36V |
|
|
Security Features |
GB4943/EN60950 |
|
|
Drive mode |
Constant Current Driver, 1/8 scan |
|
|
Gray scale level |
10 bit |
|
|
Refresh rate(Hz) |
≥960 |
|
|
Processing |
≥14 bit |
|
|
Module comes with power failure |
Save luminance, Color correction, module data |
|
|
Use parameter |
Life time(hrs) |
100,000 hours |
|
Operating temperature / humidity |
-40F–140F (-40-60℃) /5%-95%RH(non-condensing) |
|
|
Storage temperature / humidity |
-40F–140F (-40-60℃) /5%-95%RH(non-condensing) |
|
|
Certification |
CCC/FCC/TUV/CE/ETL |
|
