0.2 inch (5 mm) Advertising Taxi LED Display, Dual Sides W
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Detailed Product Description:
0.2 inch (5 mm) Advertising Taxi LED Display, Dual Sides W 960mm x H 320 mm Taxi Top LED Displays
Quick Viewing:
1. It has a long lifetime of 100000 hours;
2. It can work under -40F–140F (-40-60℃) /5%-95%RH(non-condensing);
3. DC9-36V large scale of input voltage, typical value: DC12V/24V;
4. W 192 x H 64 dots, W 37.80 x H 12.60 inch each sides;
5. Aluminum cabinet with curved angle, similar with vehicles’ streamlining design style;
6. Horizontal and vertical 120 degree Plus larger viewing angle than taxi LCD screens;
7. Color temperature 3200-9300 k adjustable;
8. Less than 50LB (22kg) each set, ultra-thin and light weight design;
9. FCC/CE/TUV/ETL/RoHS certificated, both Europe and North America are satisfied;
Detailed Description:

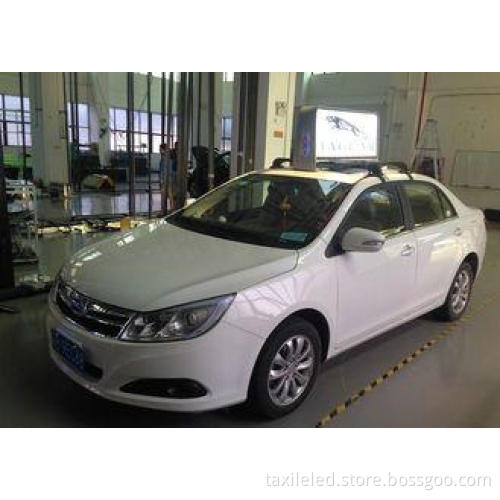

Ocolour outdoor Taxi Roof Video Led Display is a new type of electronic media advertising with elegant and attractive appearance, mainly installed on taxis, buses and other vehicles as a terminal carrier, the purpose is to form a new generation of networked, intelligent, digital outdoor media. This media is an integration of outdoor, electronics, mobile and Wi-Fi .3G/4G etc. World's newest and most advanced digital taxi top advertising media, taxi roof led display, It can be customized for your taxi.
Popular Application:
Specifications:
|
Item |
Technical Parameters |
|
|
Screen model |
OC-MT-P5SMD2525 |
|
|
R chip (wavelength range: 620-630nm, 5nm) |
Brightness range: 500-900mcd |
|
|
G chip (wavelength range: 460-470nm, 4nm) |
Brightness range: 1200-1500mcd |
|
|
B chip (Wavelength range: 520-530nm, 4nm) |
Brightness range: 300-450mcd |
|
|
Module |
Led configuration |
SMD 3 IN 1: SMD2525/SMD3528 |
|
Pixel pitch (mm) |
5mm(0.2 inch) |
|
|
Module resolution (W X H) |
W 32 x H 32 dots |
|
|
Module dimension(W x H inch) |
W 6.3 x H 6.3 x D 0.67 inch (W 160 × H 160 x D17 mm) |
|
|
Cabinet |
Module quantity(W × H) |
W 6 × H 2, per side |
|
Cabinet resolution(W × H) |
W 192 × 64 dots, per side |
|
|
Cabinet dimension(W x H inch) |
W 37.80 x H 12.60 inch per side (W 960 x H 320 mm per side) |
|
|
Cabinet surface area(sq.ft) |
3.31 sq.ft / (0.31sq.m) per side |
|
|
Physical pixel density(dots/sq.ft) |
3716dots/sq.ft(40000dots/㎡) |
|
|
Brightness |
≥465CD/sq.ft (5000CD/㎡) |
|
|
Cabinet flatness(inch) |
≤0.08inch (0.2mm) |
|
|
Maintenance |
Back-maintained |
|
|
Cabinet material |
Aluminum |
|
|
Cabinet weight |
≤48.5lb (22kg) |
|
|
Optical parameters |
Single-point brightness correction |
available |
|
Single-point color correction |
available |
|
|
Color temperature(K) |
3200—9300 adjustable |
|
|
Horizontal viewing angle |
120° |
|
|
Viewing angle (Vertical) |
120° |
|
|
Brightness Uniformity |
<3% |
|
|
Color uniformity |
≥97% |
|
|
Contrast ratio |
5000:1 |
|
|
Electrical parameters |
Max power consumption |
580W per unit of taxi led screen |
|
Average power consumption |
180-240W per unit of taxi screen |
|
|
Power supply |
DC9-36V |
|
|
Security Features |
GB4943/EN60950 |
|
|
Drive mode |
Constant Current Driver, 1/8 scan |
|
|
Gray scale level |
10 bit |
|
|
Refresh rate(Hz) |
≥960 |
|
|
Processing |
≥14 bit |
|
|
Module comes with power failure |
Save luminance, Color correction, module data |
|
|
Use parameter |
Life time(hrs) |
100,000 hours |
|
Operating temperature / humidity |
-40F–140F (-40-60℃) /5%-95%RH(non-condensing) |
|
|
Storage temperature / humidity |
-40F–140F (-40-60℃) /5%-95%RH(non-condensing) |
|
|
Certification |
CCC/FCC/TUV/CE/ETL |
|
