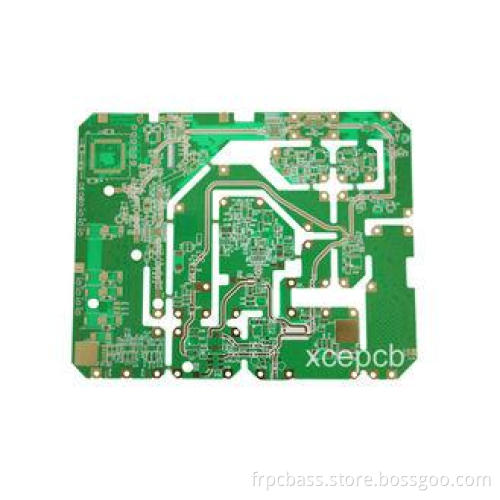

Immersion Gold Rigid Multilayer FR4 PCB 4 Layer for Electro
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Immersion Gold Rigid FR4 PCB 4 Layer Used In Consumer Electronics
Specification:
Base Material: FR4
Number of Layers: 4 Layers
Board Thickness: 1.6 mm
Copper Thickness: 0.5 OZ to 7.0 OZ
Min. Hole Size: 3mil (0.075mm)
Min. Line Spacing: 3mil (0.075mm)
Min. Line Width: 3mil (0.075mm)
Surface Finishing: HASL lead free
Solder Mask Color: Green
Certificate: UL, ISO 9001, ISO 14001
Parameter:
|
Layer |
4 layer |
|
Material type |
FR-4 |
|
Board thickness |
1.6MM |
|
Copper thickness |
0.5 OZ to 7.0 OZ |
|
Copper thickness in hole |
>25.0 um (>1mil) |
|
Size |
Max. Board Size: 23 × 25 (580mm×900mm) |
|
Min. Drilled Hole Size: 3mil (0.075mm) |
|
|
Min. Line Width: 3mil (0.075mm) |
|
|
Min. Line Spacing: 3mil (0.075mm) |
|
|
Surface finishing |
HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating |
|
Tolerance
|
Shape tolerance: ±0.13 |
|
Hole tolerance: PTH: ±0.076 NPTH: ±0.05 |
|
|
Certificate |
UL, ISO 9001, ISO 14001 |
|
Special requirements |
Buried and blind vias+controlled impedance +BGA |
|
Profiling |
Punching, Routing, V-CUT, Beveling |
| Any other special material please feel free to let us know | |
Description:
We have 6 Years high frequency pcb production experience
We are certified by ISO13485, TS16949, ULE332411, ISO14001, ISO9001
70% of our customers are from Europe and North America
We use very good material, such as KB, Shengyi, etc
100% of our prodcuts are tested and 100% pass before delivery
Fast samples for your test
