Computer Carton Compression Tester HD-501-600

1.Carton compression tester

• It adopts Japan's advanced sensor
• Can test box,carton for lab data
• Compression testing report

2.The usage

carton compression tester is used for measuring the pressure strength of cartons, containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. It's equipped with 4 precise Load Cells for detection. The testing results are displayed by computer.

3.The main technical parameters are as follows :

Capacity (optional):1 T

Unit (switchable):Kg, Lb, N

Load Resolution:1/10,000

Load Accuracy: ≤0.5%

Test Space (L×W×H):600×800×800 mm

Speed of Compression:10 ± 3 mm/min

Report Items:Serial number, Peak value, Average value, Designated holding pressure value; all memorable

Structure:AC Frequency Conversion Motor ( Taiwan);

Dimension (L×W×H):1090×800×1325 mm

Weight :Approx. 590 kg

Power:220V/ 50Hz

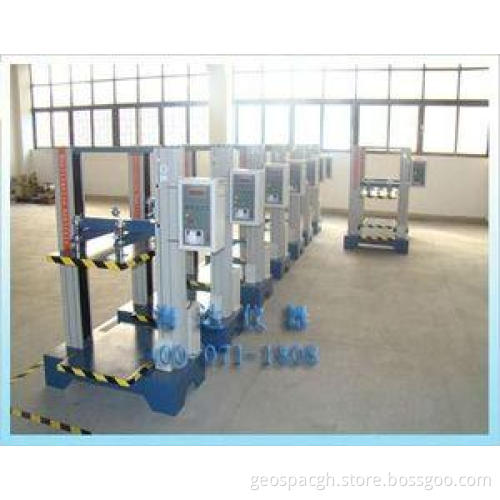

4.The pictures
