Output White Power Adapter 5V 500mA 6V 500mA For Blood Pres
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong,China |
|---|

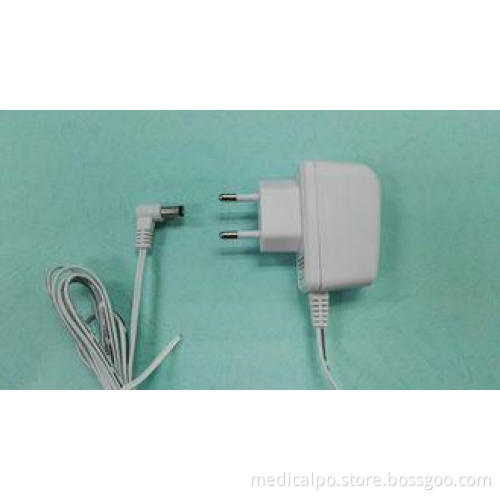

Output White Power Adapter 5V 500mA 6V 500mA For Blood Pressure Monitor
Specification:
| Model | Input | Output | ||
| Vac / Freq | Voltage | Output-load current | Rated power | |
| TAP5 - 030S035 |
100~240VAC 47~63Hz |
3.3Vdc | 350mA | 1W |
| TAP5 - 040S050 | 4.2Vdc | 500mA | 2W | |
| TAP5 - 050S050 | 5Vdc | 500mA | 2.5W | |
| TAP5 - 060S050 | 6Vdc | 500mA | 3W | |
| TAP5 - 040S100 | 4Vdc | 1000mA | 4.2W | |
| TAP5 - 050S100 | 5Vdc | 1000mA | 5W | |
| TAP5 - 120S030 | 12Vdc | 300mA | 3.6W | |
| TAP5 - 120S100 | 12Vdc | 500mA | 6W | |
| Safety standard & EMC |
EN / IEC60601 EN60950 |
|||
| Certification | CE,PSE,CCC,CB,PSE | |||
AC Plug:
| Input AC pin | Outline dimension (L*W*H) | Output mode |
| China Japan America | 70.0*41.0*37.0mm | Cord or 4PIN USB |
| Brazil Korea Germany | 70.0*41.0*47.0mm | |
| Australia | 70.0*41.0*38.0mm | |
| England | 70.0*48.8*37.0mm | |
| NOTE : The outline height does not include the height of the AC PIN | ||
Description:
1. Input voltage range of AC90 - 264V. wide voltage input, comply with the global standard.
2. Input voltage frequency: 47-63Hz
3. Output voltage: according to customer requirements
4. Output voltage adjustable rate: 1%
5. Rated output current can be customized
6. Current output range 0-5A
7. Output Ripple & noise less than 100mVp-p. DC ripple small, high efficiency,low temperature, long service life,
8. The working efficiency low power design of 78-86%. no-load power consumption is less than 0.3W
9. Output short circuit protection. The built-in over current, over voltage protection(auto recovery)
10. Working temperature 0 °C ~+50 °C
11. Storage temperature -20 °C ~+85 °C
Applications:
It’s suitable for an extremely wide range of applications, including:
Using for electronic blood pressure monitor /glucometer/physiatrics instrument / beauty apparatus / massager / cardio kickboxing/electro apparatus for acupuncture /
medical equipment etc and other products
Competitive Advantage:
1. Constant voltage output and Isolated output for additional safety ( Medical grade certification EN60601- 1 , EN60601-1-2 )
2. Protections:Over Voltage / Over Current / Short Circuit
3. 2 Year Warranty
4. Products beautiful, high-temperature flame-retardant shell by ultrasonic welding, safety and reliability;
5. Output interference is very small, the output voltage stability, better able to extend the life of an external electric-family
6. Small And Compact Size: L62 * D26 * H42mm
