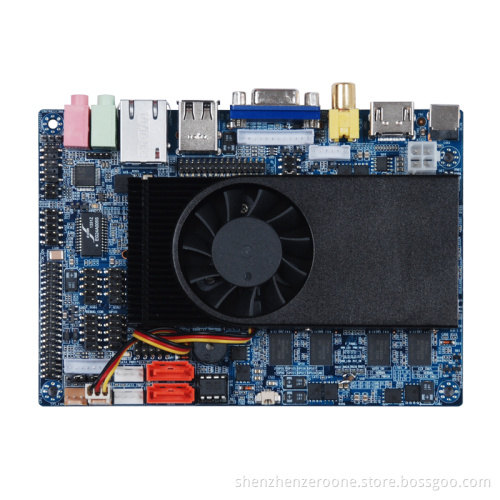

145x100MM EPIC 3'5 inch Embedded Motherboard/Dual core Intel Celeron 1037U processor/Intel NM70 Chipset

Processor: dual-core Intel® Celeron® 1037U 1.8GHz

Chipset: Intel® NM70

Graphics chip: Intel HD Graphics integrated graphics core

Display output: VGA, built-pin VGA, HDMI, LVDS, TV-OUT

RAM: 2GB DDR3 onboard memory

Sound: Onboard Realtek ALC662 HD Audio decoding controller

NIC: Onboard Realtek RT8111E Gigabit Ethernet

Memory: 2 * SATAⅡ

Expansion slots:

• 1 * MINI-PCIE (forM-SATA / WIFI) 1 * SIM
• USB: 6 * USB2.0 (4 * USB2.0 need to expand)
• COM: 4 * COM

Rear I / O Interface

• 2 * USB2.0 port
• 1 * VGA port
• 1 * HDMI port
• 1 * TV-OUT port
• 1 * RJ-45 LAN port
• 1 * DC
• 1 * MIC-IN
• 1 * LINE-OUT

Internal I/O Interface

• 1 * 30PIN LVDS
• 1 * 12pin VGA pin
• 4 * COM pin
• 1 * 4PIN SPEAKER
• 1 * 6PIN INVERT
• 2 * USB2.0 pins (expandable four USB ports)
• 1 * 4pin ATX
• 1 * 8PIN F-AUDIO pin
• 1 * 3PIN SPDIF pin
• 1 * LAN pin
• 1 * GPIO pins
• 1 * PS / 2 pin
• 1 * CLR_CMOS clear CMOS jumper cap
• 1 * The AUTO-ON power automatically switched Jumper
• 2 * SATA-PWR pin
• 2 * SYS-FAN pin
• 1 * F-PANEL pins
• 1 * BAT pin

BIOS: AMI 32M BIOS

Powered by: DC-IN, built 4pin Dc power connector

Cooling System: The onboard CPU heatsink and fan

Work Environment: -15 ~ 60 ℃ ; 0% to 95% relative humidity, non-condensing

Plate: 145X 100MM EPIC
