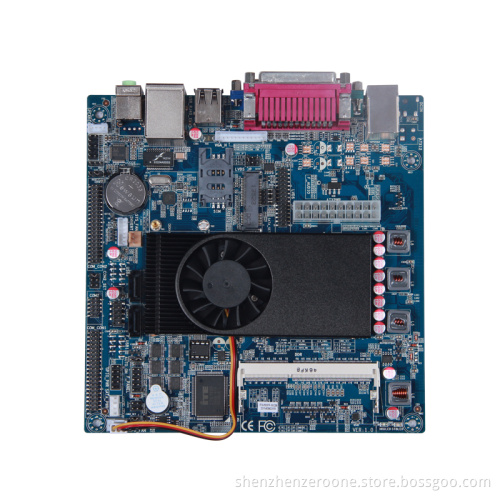

170X170MM MINI-ITX Embedded Motherboard/Intel Celeron 1037U processor/Intel NM70 chipset/10xCOM port/Dual 8 LVDS

CPU: Dual core Intel® Celeron® C1037U 1.8GHz

Chipset: Intel® NM70

GPU: Integrate Intel HD Graphics

Display output: VGA.built-in VGA pin.LVDS pin

Memory: 1*SO-DIMM,DDR3 1600\1333\1066MHz Memory,max support up to 8GB

Sound: Onboard Realtek ALC662 HD audio decoding controller

Network: Onboard Realtek RT8111E Gigabit LAN

Storage: 2*SATAⅡ

PCI-E: 1*MINI-PCIE(for M-SATA/WIFI) 1*SIM

USB: 7*USB2.0(2*USB2.0 need to extend)

COM: 10* COM(9*COM need to extend)

Rear I/O interface:

6*USB2.0 port

1*VGA port

2*RJ-45 network port

1*LPT port

1*DC

1*AUDIO

1*PS/2

Internal I/O interface:

1*30PIN LVDS pin

1*12pin VGA pin

9*COM pin

1*6PIN INVERT pin

1*20pin ATX

1*SPDIF pin

1*SPEAKER pin

1*GPIO pin

1*AUDIO pin

1*CLR_CMOS

1*AUTO-ON

1*SATA-PWR pin

1*SYS-FAN pin

1*F-PANEL pin

BIOS: AMI 32M BIOS

Power supply: DC-IN,built-in 4PIN DC power supply port

Cooling system: Main board with CPU radiator and fan

Working condition: -15~60℃;0% ~ 95% relative humidity, no condensation

Size: 170X170MM MINI-ITX
