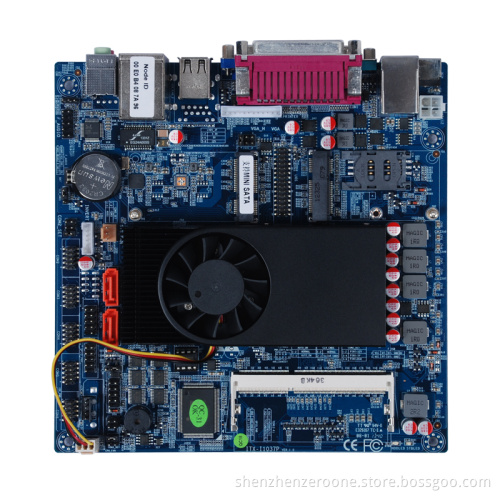

17x17cm MINI-ITX Embedded Motherboard/Intel Celeron 1037U processor/Intel NM70 chipset/1xVGA port/COM port/USB2.0

CPU: Dual core Intel® Celeron® C1037U 1.8GHz

Chipset: Intel® NM70

GPU: Integrate Intel HD Graphics

Output display: VGA.built-in VGA pin.LVDS

Memory: 1*SO-DIMM,DDR3 1600\1333\1066MHz Memory,max support up to 8GB

Sound: Onboard Realtek ALC662 HD audio decoding controller

Network: Onboard Realtek RT8111E Gigabit LAN

Storage: 2*SATAⅡ

PCI-E: 2*MINI-PCIE(for M-SATA/WIFI) 1*SIM

USB: 8*USB2.0(4*USB need to extend)

COM: 6* COM(5*COM need to extend)

Rear I/O interface:

4*USB2.0 port

1*VGA port

1*COM port

1*RJ-45 network port

1*LPT port

1*DC

1*AUDIO

1*PS/2

Internal I/O port:

1*30PIN LVDS

1*12pin VGA pin

5*COM pin

1*6PIN INVERT

1*4pin ATX

1*PANEL pin

1*SPDIF pin

1*GPIO pin

1*AUDIO pin

1*CLR_CMOS

1*AUTO-ON

2*SATA-PWR pin

1*SYS-FAN pin

1*F-PANEL pin

BIOS: AMI 32M BIOS

Power supply: DC-IN,built-in 4PIN DC power supply interface

Cooling system: Main board with CPU radiator and fan

Working condition: -15~60℃;0% ~ 95% relative humidity, no condensation

Size: 170X170MM MINI-ITX
