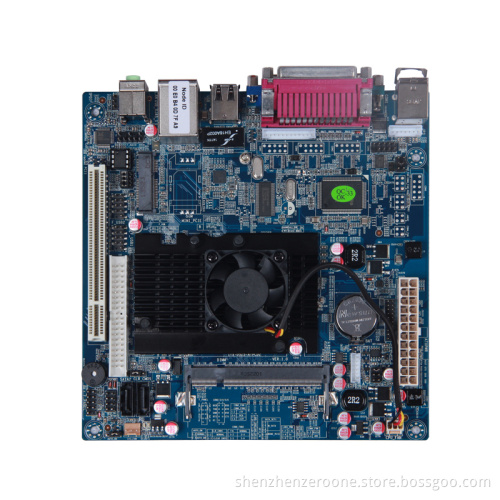

17x17cm MINI-ITX Embedded Motherboard/Intel Atom D525 processor/Intel ICH8M chipset/Intel GM3150 GPU

CPU: Intel Atom™ D525 Dual core 1.8GHz

Chipset: Intel® ICH8M

GPU: Integrate Intel GM3150

Display output: VGA, built-in VGA pin, LVDS pin

Memory: 1*SO-DIMM, DDR2 667\ 800MHz memory, max support 4GB

Sound: Onboard Realtek ALC662 HD audio decoding controller

Network: Onboard Realtek RT8105E 100M LAN

Storage: 2*SATA II

PCI-E: 1*PCI 1*MINI-PCIE( for M-SATA/WIFI) 1*SIM(optional)

USB: 8*USB2.0 (4*USB2.0 need to extend)

COM: 2*COM (1*COM need to extend)

Rear I/O interface:

4*USB2.0 port
1*VGA port
1*COM port
1*RJ-45 network port
1*LPT port
1*AUDIO
1*PS/2

Internal I/O interface:

1*20pin LVDS pin
1*12pin VGA pin
1*PS/2 pin
1*IDE
1*ATX-PWR
1*COM
1*6pin INVERT
1*F-PANEL pin 1*SPDIF pin
1*GPIO-PWR 1*F-AUDIO pin
1*CLR_CMOS jumper 1*AUTO-ON jumper
1*SYS-FAN pin 1*CPU-FAN
1*LVDS-JP 1*COM-FUN
2*USB2.0 pin (support 4*USB2.0 port)

BIOS: AMI BIOS

Power supply: ATX 24 pin

Cooling system: Main board with CPU radiator and fan

Working condition: -15~60°C; 0%~95% humidity, no condensation

Size: 170X170MM MINI-ITX
