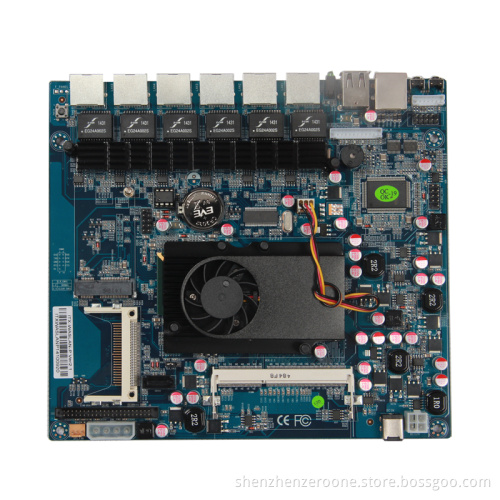

18x20cm Network Security Motherboard /Intel Atom D525 processor/Intel ICH8M chipset/6xRJ-45 GLAN

CPU: Intel® Atom™ D525 Dual core 1.8GHz

Chipset: Intel® ICH8M single chip

GPU: Integrated Intel GM3150

Display output: Built-in VGA pin

Memory: 1*SO-DIMM,DDR3 800MHz Memory,max support up to 4GB

Network: 6*Intel 82583V 1000M

Storage: 2*SATAⅡ

PCI-E: 1*PCIE1X 1*MINI-PCIE(for M-SATA/WIFI) 1*CF

USB: 4*USB2.0(2*USB2.0 need to extend)

COM: 1*RJ45 to COM/1*COM

Rear I/O interface:

2*USB2.0 port

6*RJ-45 GLAN

1*RJ-45 to COM port

1*PWR button

1*RESET button

1*LED(power drive indicator light)

1*DC-IN port

Internal I/O port:

1*IDE

1*IDE-PWR

1*USB2.0 Pin(support extend 2*USB2.0 port)

1*COM Pin

1*12pin VGA Pin

1*PS/2 Pin

1*4pin DC port

1*CLR_CMOS

1*SYS-FAN Pin

BIOS: AMI BIOS

Power supply: DC-IN, built-in 4PIN DC port

Cooling system: Main board with CPU radiator and fan

Working condition: -15~60℃;0% ~ 95% relative humidity, no condensation

Size: 180X200MM
