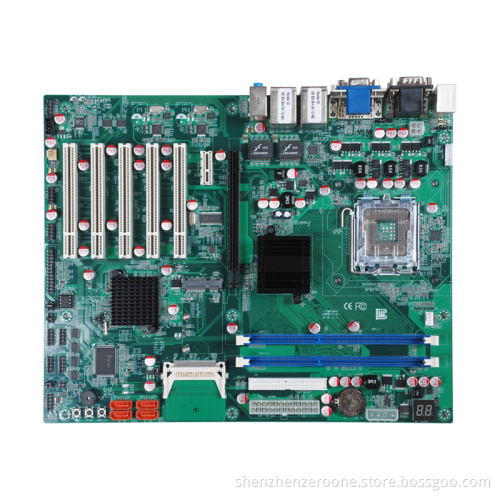

305x244mm Industrial ATX Motherboard with Intel G41/ICH7 chipset/2xLAN Port

CPU: Supports Intel® Core™ 2 Quad/Core™ 2 Duo/Pentium® Dual-Core/Celeron® Dual-Core/ Celeron® 400 Series processors

Chipset: Intel® G41+ICH7

GPU: Integrates Intel GMA X4500HD

Display output: VGA.DVI

Memory: 2* DDR3 1066/1333MHz Memory,max support up to 8GB

Sound: Onboard Realtek ALC662HD audio decoding controller

Network: Onboard Realtek RTL8111DL Gigabit LAN

Storage: 4*SATAⅡ

PCI-E: 1*PCIE 16X 1*PCIE 1X 5*PCI 1*MINI-PCIE 1*CF

USB: 8*USB2.0(4*USB2.0 need to extend)

COM: 6*COM(4*COM need to extend)

Rear I/O interface:

4*USB2.0 port
2*LAN port
2*COM port
1*VGA port

1*DVI port
1*AUDIO port
1*PS/2 port

Internal I/O interface:

2*USB2.0 Pin(support extend 4*USB port)

1*4PIN ATX

1*24PIN ATX Pin

1*IDE Pin

1*IDE-PWR

1*LPT Pin

4*COM Pin

2*COM-FUN

1*F-PANEL Pin

1*F-AUDIO Pin

1*CD-IN Pin

1*JSLE CF

1*PS/2 Pin

1*KB-PWR jumper

1*CLR_CMOS
1*SYS-FAN Pin

1*CPU-FAN Pin

1*PWRSW button

1*RSTSW button

1*CMOS-CLR button

1*JP1

BIOS: AMI BIOS

Power supply: 24+4 Pin

Cooling system: Self-equipped CPU radiator and fan

Working condition: -15~60;0% ~ 95% relative humidity, no condensation

Size: 305x244MM
