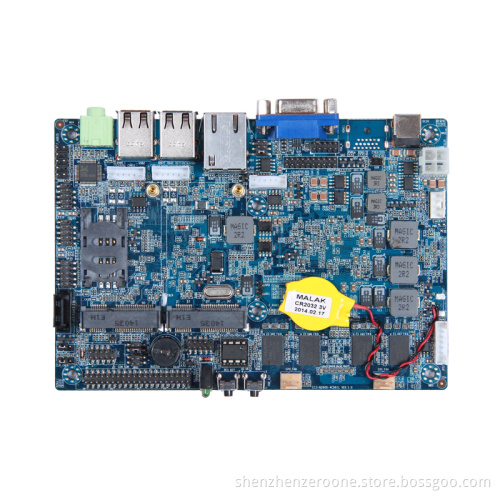

3'5 inch Embedded Motherboard/Intel Atom N2600 processor/Intel NM10 chipset/Intel PowerVR SGX545 GPU

CPU: Intel® Atom™ N2600 Dual core 1.6GHz

Chipset: Intel® NM10

GPU: Intel® PowerVR SGX545

Display output: CVBS, HDMI, VGS, built-in VGS pin, LVDS pin

Memory: Onboard 2GB

Souind: Onboard Realtek ALC HD 662 audio decoding controller

Network: Onboard Realtek RT8111E Gigabit LAN

Storage: 2*SATA II

PCI-E: 1*MINI-PCIE(for M-SATA) 1*SIM

USB: 8*USB2.0 (4* need to extend)

COM: 5*COM

Rear I/O interface:

4*USB2.0 port
1*RJ-45 port
1*DC-IN
1*HDMI port
1*VGA port
1*LINE OUT

Internal I/O interface:

2*USB2.0 pin (support extend 4*USB port)
1*10pin VGA pin
1*20pin LVDS pin
1*PS/2 pin
5*COM pin
1*INVERT pin
1*F-AUDIO pin
1*F-PANEL pin
1*SATA-PWR pin
1*AUTO-ON
1*CLR_CMOS
1*SYS-FAN pin
1*CPU-FAN pin

BIOS: AMI BIOS

Power supply: DC-IN, built-in 4pin DC power supply port

Cooling system: Self-equipped CPU radiator and fan

Working condition: -15~60°C; 0%-95% humidity, no condensation

Size: 102X148MM
