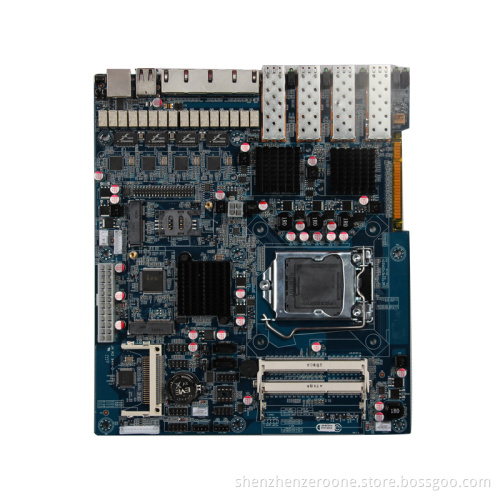

Network Security motherboard/Intel Z87 chipset/SFP/4xLAN port

CPU: Support LGA1150

Chipset: Intel® Z87

GPU: Intel CPU built-in Graphic cores

Display output: Built-in VGA pin

Memory: 2*SO-DIMM, DDR31600\1333\1066MHz Memory, max support up to 16GB

Network: 4*Intel 82574 1000M 4*SFP (I350 chip)

Storage: 2*SATA II

PCI-E: 1*MINI-PCIE 1*MINI-SATA 1*SIM 1*CF 1*PCIE8X

USB: 6*USB2.0(4*USB2.0 need to extend)

COM: 1*COM(1*Rj45 to COM rear)

Rear I/O interface:

2*USB2.0
4*RJ-45 GLAN
1*RJ-45 to COM
4*SFP
1*PWR
5 sets of LED indicator light

Internal I/O interface:

1*4pin ATX
1*24pin ATX
2*USB2.0 pin(support extend 4*USB interface)
1*12pin VGA pin
1*PS/2 pin
1*F-PANEL pin
1*SATA-PWR pin
1*SYS-FAN pin
3*CPU-FAN pin
1*JCMOS
1*AUTO-ON
1*DEBUG-COM
1*LAN-LED pin 3*BYPASS

BIOS: AMI BIOS

Power supply: ATX 24 + 4pin

Cooling system: Self-equipped CPU radiator and fan

Working condition: -15~60°C; 0%~95% relative humidity, no condensation

Size: 210X230MM
