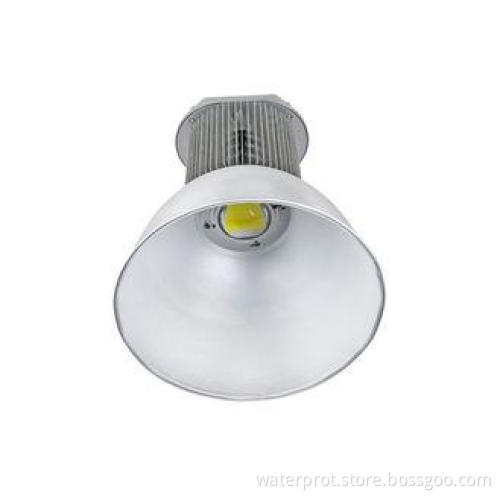

Waterproof IP65 150 W LED HighBay Light for Outside Pathway
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|
Waterproof IP65 high power 150W LED HighBay Light with Bridgelux chip for high efficiency
Features:
1) Multi-Chip on Lead Frame, Single Module LED Package Design
2) System Design Integrating Power Supply, LED Light Engine, and Heat Sink
3) Over Current, Over Voltage, Over Heat, Thunder Protection
4) Choice of Correlated Color Temperatures(Specification Re-Defined Accordingly)
5) Long lifespan for LED 50,000 hrs
6) 100% Recycle, No Pollution, and UV, IR
Specification Optical:
Model |
LY-HB108150XX |
LED Luminance |
75-100Lm/W |
Light Fixture Luminance |
WW 11250Lm |
PW 12500Lm |
|
CW 12850Lm | |
CCT |
WW 2700k-3900k |
PW 3900k-6000k |
|
CW 6000k-7000k |
|
CRI |
WW Ra >68 |
PW / CW Ra>75 |
|
LED package |
Multi-chip on lead frame single module |
Technical Data:
Input Voltage |
90-264V AC, 50/60Hz |
LED Working voltage |
DC30-36V |
Power Factor |
≧0.90 |
LED Consumption |
150W |
System Consumption |
168W |
LED Quantity |
1 pcs |
Lamp’s efficiency |
>75﹪ |
Power Efficiency |
>0.83 |
EMI Grade |
EMI Class B |
Working temperature |
-40℃~+55℃ |
Certificate |
CE |
Mechanical and System:
IP Level |
IP65 |
Housing |
Al alloy |
Dimension |
H=620mm 2R=415 mm |
NET Weight |
7.8Kg |
Heat Solution |
Convection |
Application:
1) Projector / High bay light
2) Tunnel Lighting / Pathway Lighting / Park Lighting
3) Signboard Lighting
