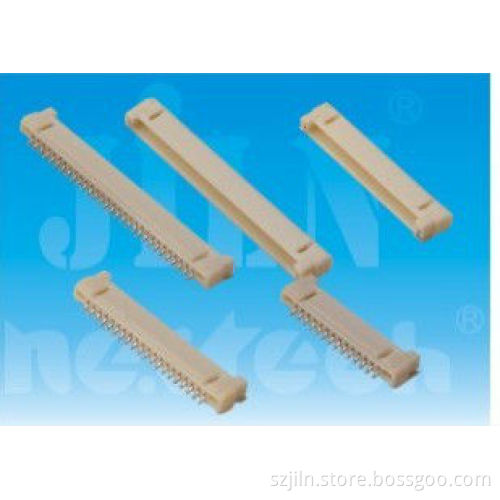

1.25 20P 25P 30P board to board header connector

Specifications 1.Rich experience in manufacturing

2.ROHS SGS

3.100% tested before delivery

4.Free sample

5.Various types for choice

1.25 DF14 Positos 20P 25P 30P       SPECIFICATIONS:

Materials
Wafer	Post&tab: Brass, tin plated Base: Nylon 6T, UL94V-0
Housing	Nylon 66,UL94V-0
Terminal	Phosphor Bronze, Tin Plated
Voltage Rating	250V AC, DC
Current Rating	1A AC, DC
Withstanding Voltage	500v AC/minute
Contact Resistance	30mΩ max.
Insulation Resistance	1000MΩ min.
Temperature Range	-25°C to +85°C

        Engineering drawing:    Ordering Information:

No. of Contacts	Connector Type	Touch Type	Option Type	Color Type
20	S=Straight	B=Bottom	W=With Lock	B=Black
25	R=Right Angle	U=Upper	N=Without Lock	W=White
30		D=Double		E=Beige
				A=Brown

      Our Advantages: 1.All kinds of our products have passed ROHS. 2.Our factory has passed the ISO9001:2000 certification and ISO1400 Certification. 3.We mainly produce the connectors which are used on the Internet,storage,digital computer and other related products. 4.We are glad to make samples according to your drawings and specifications. 5.Available for ODM/OEM order. 6.Please contact us so we can offer you the best quality,competitive price and timely delivery.
