1500w Off Grid Inverter With AC Charger Solar Power Inverter

Product Description 1500w Inverter With AC Charger Solar Power Inverter

Features and Function: Pure sine wave output,Strong ability of impact resistance Have UPS function and AC charger function CPU control technology; SCM control,Use MOSFET and IGBT Wide input voltage range: 145-275V; 300W-3000W has three step AVR(two step -up, one step -down) Protection against overload, short-circuit, overvoltage, under-voltage and over-temperature, etc. Anti reverse connection protection and high-low voltage protection(option)  Special overload protection: when it is overload, it will lock the unit automatically,when it restores,it will restart the unit automatically again.  Strong inverter ability. It can change frequency immediately and it is able to drive the inductive load such as air conditioner, refrigerator, motor, etc.  LCD display and can choose working mode by yourself Working Mode Option:

1,The city power priority: when city power is available ,the inverter will work AC output , city power will supply to load ; when have both city power, inverter will charges power to battery . when city power failed, inverter will use battery power

talk the load . 2,Battery priority : when it have battery power , inverter will use battery power take the load , when battery power is

lower ,inverter will automatically use ups function, use city power talk the load and charge the battery .   2. Specifications

Rated capacity(W)

300W

600W

1000W

1200W

1500W

1800W

2 kw

3 kw

4   kw

5 kw

6 kw

7500w

10 kw

Input

Commercial  Power range       (VAC)

100/110/120/127/220/230(+25%,-35%)

100/110/120/127/220/230(±20%)

Frequency (Hz)

60/50±10%

Output

AVR voltage range (VAC)

100/110/120/127/220/230±10%(Auto-sensing)

(No)

Transfer time

Typical:5ms(Including detection time)

Battery

DC Voltage

12VDC

12/24VDC

24VDC

24/48VDC

48VCD

96/192VC

Output

Waveform

Pure sine wave

Frequency(Hz)

Commercial power supply: shared frequency  with the commercial inversion state:60/50±0.5

Protection

Overload

IPS automatically shut down if overload exceeds  120% of normal value for 10 seconds,  IPS automatically resume work if overload comes to rated load.

Battery

Type

Sealed, maintenance-free lead acid

Recharge current

15A(Maximum)

Battery protection

Automatic self-test, discharge protection, over-charge protection, smart management system.

Size

External Size(mm) D×W×H

375×130×190

452×192×338

500×262×455

570×260×750

Size(mm) D×W×H

495×490×320 (2 piece)

530×335×475 (1 piece)

545×345×535 (1 piece)

701×435×895(1piece)

Net weight(kg)

6.5

10

11

17

19

26.2

25.3

28.7

33

31/52

41/55

47/69

72

Gross weight(kg)

15.6

22.6

25

19.7

22

28.9

28.7

32.6

35.7

45/66

55/69

61/83

81

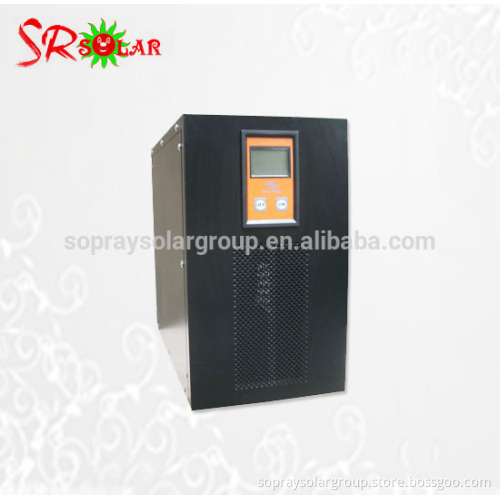

      3. Pictures of our products:         Company Information
