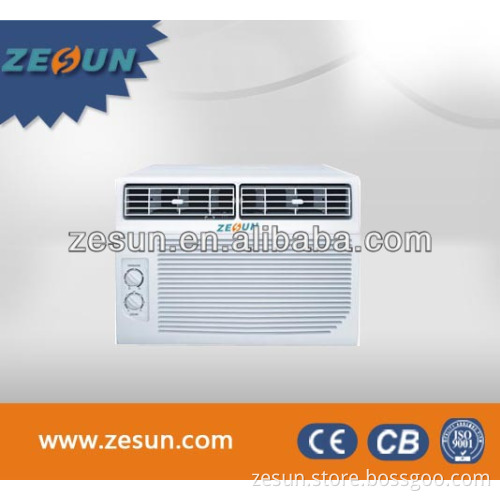

Fixed Frequence Competitive Cool and Heat Window Air Conditioner

Specifications 1) Intelligent control and display technology

2) Wide voltage design

3) Dual air guide plate technology

Fixed Frequence Competitive Cool and Heat Window Air Conditioner     Specifications: 1. Ultra-low noise   2. Self-dignosis   3. Automatic restarst    4. 5 years warranty  5. R22/R410a Gas          Main Features:   1.Intelligent control and display technology 2.Wide voltage design 3.Dual air guide plate technology 4.Memory functions 5.Sleeping mode automatic control 6.Audio prompt diagnosis on failures 7.Timed switch-on and switch-off   Main Specification:

Model No.		KT3C-51GW	KT3CR-51GW	KT3C-70GW	KT3CR-70GW
Control type		Mech/(remote)	Mech/(remote)	Mech/(remote)	Mech/(remote)
Cooling Area-Sq.Ft		323~538	323~538	538~753	538~753
Cooling Capacity-Btu/Hr		18000	18000/18000	24000	24000/24000
E.E.R           BTU/W.H		8.5	8.5	8.5	8.5
COP               W/W		/	2.7	/	2.7
Dehumid. Capacity (Ltrs/Hr)		1.9	1.9	2.2	2.2
Noise Level-dB(A) low/high speed		59/61	59/61	59/61	59/61
Voltage-Volt		220-240	220-240	220-240	220-240
Frequency-Hz		50	50	50	50
Input Current-Amps		9	9.5/8.7	11.8	11.8/11.3
Input Power-W		1950	2100/1900	2800	2800/2700
Refrigerant /Volume		R22/	R22/	R22/	R22/
Chassis Type		fixed	fixed	fixed	fixed
Compressor Type		rotary	rotary	rotary	rotary
Unit Dimension :
Height-Inch		27	27	27	27
Width-Inch		26.4	26.4	26.4	26.4
Depth-Inch		18.1	18.1	18.1	18.1
Packaging Dimension
Height-Inch		31.5	31.5	31.5	31.5
Width-Inch		29.7	29.7	29.7	29.7
Depth-Inch		20.5	20.5	20.5	20.5
Net Weight-lbs.		136.7	136.7	143.3	143.3
Gross Weight-lbs.		143.3	143.3	150	150
Stuffing Quantity (40' HQ)		221	221	221	221
Indoor	Fan type	Centrifugal	Centrifugal	Centrifugal	Centrifugal
	Fan diameter	216	216	216	216
asynchronism motor(iron)	speed H/M/L             (rpm)	1060/950/900	1060/950/900	1060/950/900	1060/950/900
	output-w	160	160	160	160
Outdoor	Fan type	Axial Flow	Axial Flow	Axial Flow	Axial Flow
	Fan diameter	398	398	398	398
evaporator	regular(H/W/D)	373/399/25.4	373/399/25.4	373/399/38.1	373/399/38.1
	coil fin number/Inch	21	21	21	21
condenser	regular(H/W/D)	582/420/25.4	582/420/25.4	582/420/25.4	582/420/25.4
	coil fin number/Inch	21	21	21	21
