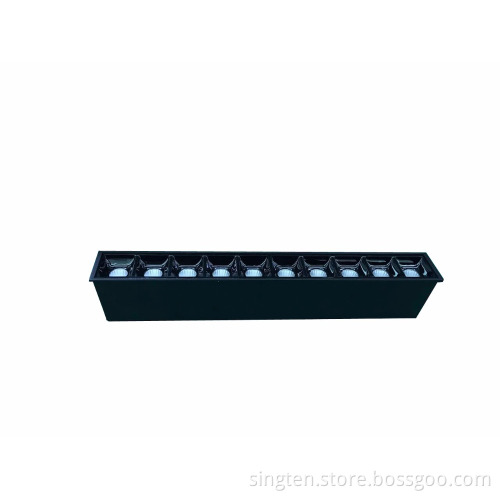

Five head Trimless High luminous led downlight 10w

Five head frameless High luminous  led downlight 10w Product Description       TDX are originally researched and developed by KWT, pure aluminum housing, anodized finish, use PET reflector, mirror-finish anodized, reflective rate>95%, high grade glass, transparent rate>93%,top quality CITIZEN LEDs, with KWT high quality exterior driver, dimmable,good heat sink, brilliant quality, more than 40,000 hours life span.

Model

XTD-B-01

XTD-B-02

XTD-B-05

XTD-B-10

XTD-B-15

Input(V)

220-240Vac  50/60Hz   /   110Vac  60Hz

Current(mA)

0.01A/0.02A

0.02A/0.04A

0.04A/0.09A

0.09A/0.18A

0.13A/0.27A

Power(W)

2W

4W

10W

20W

30W

CRI:

Ra≥90

CCT(K)

2700K - 4000K

Luminous flux(lm)

88

172

458

867

1335

LED

OSLON CSSRM1.CC RA≥90

Beam angle

15°/30°/45°

Dimension (mm)

72*41*49

72*71*49

143*72*49

276*72*49

408*72*49

Cut out(mm)

42*41

72*41

145*41

277*41

410*41

N.W.(g)

157

209

386

684

998

Inner Box(mm)

87*80*66

104*55*80

80*60*178

80*60*311

80*60*445

Packing Qty(pcs)

100

75

40

30

15

Carton(mm)

367*420*355

335*295*425

375*260*425

325*625*265

460*320*260

G.W.(kg)

15.3

15.6

16

20.8

15.8



Explosive view

  Installation 1.Make sure power is off before installation 2.Copper line must be fully covered,then carry the power line to make sure it is fixed 3.This manual is available Connection Diagram

Photometric Integrating Sphere Test Report
