The private model 90Ra 97Ra Dimmable COB LED Track Light from 20w to 45w

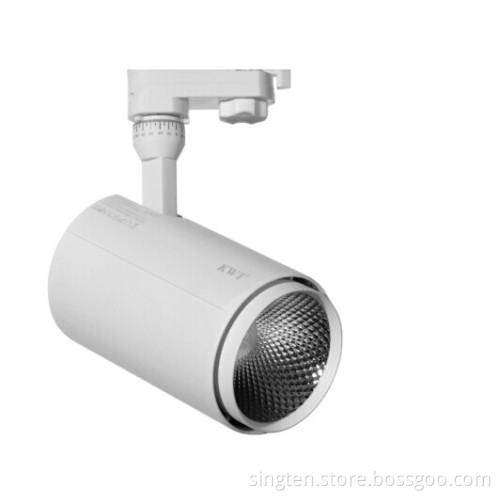

High Anti-glare dimmable gallery led track Light Product Description         Tack light AT9025 mainly for North America, originally researched and developed by KWT, high-end spotlight with interior driver, design inspiration from peopel’s double-eyelid eyes, 90mm diameter face cover,
integrated molded lamp housing of CNC aluminum, international top COB CITIZEN chip, plus KWT-oriented glare-free reflector and KWT exclusive non-flicker driver, stable specifications, glare-free, good heat sink, brilliant quality, more than 40,000 hours lifespan       Product parameter

Model NO	Power	Input voltage	CCT	Beam angle	CRI	PFC	Finish Color
RT9020	20W	100-240V 50/60Hz	2700k/3000k/4000k/	12°/24°/36°	>85	≥0.95	White/black/silver
RT9025	25W
RT9035	30W
RT9035	35w
RT9040	40w
RT9045	45w

    Aging Test   Installation   1.Please install the related track rail before install the light (Picture one)
2.Fit the adapter into the track rail, turn the adapter for 90 degrees(Picture two)
3.Adjust the track light’s light direction, the switch on   Packaging & Shipping

Product model	RT9025
Packaging unit	Folding carton box	Shipping carton box
Packaging Qty	1pcs	18pcs
Dimensions	135×135×290mm	425×600×430mm
Volume	5.29 dm³	109.65 dm³
Gross weight	1.14kg	22.62kg



Shipment Term

by ship/by air/by express(DHL.UPS,FEDEX,TNT,ect)
