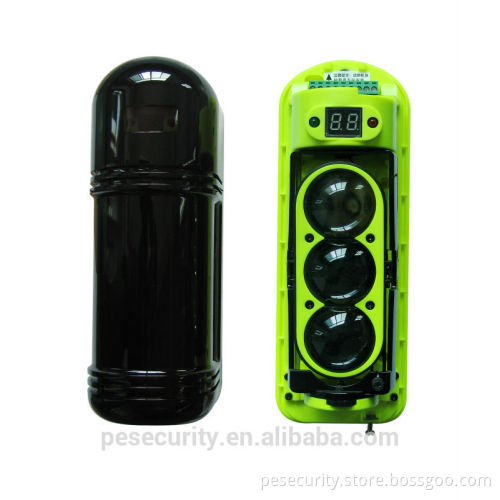

Wired Laser Burglar Infrared Sensor

  Product Description

Model	ABE-50	ABE100	ABE-150	ABE-200	ABE-250
Detecting distance(outdoor)	50m	100m	150m	200m	250m
Detecting distance(indoor)	150m	300m	450m	600m	750m
Number of beams	3 beams
Detection method	Simultaneous interruption of 3 infrared beams
illuminant	infrared digital pulse
Interruption time	50-700ms (adjustable)
Alarm cycle	2±1s
Alarm output	Relay output 1C. contact output,DC/AC30V/0.5AMax.
Power ad Voltage	DC12~24V ; AC12-18V,P: 4W(max)
Current consumption	transmitter + receiver =100mA  max
Operating temperature	-25°C-55°C
IP rating	IP 65
Humidity	95%  max
Correction angle	horizontally:180°(±90°) vertically:20°(±10°)
Installation location	Indoor/outdoor,wall/pole
Exterior dimension	product: 265mm*83mm*85mm box: 310*208*110 mm
Weight	1.5KG

    New features:
Four channel frequency conversion technology
Four channel frequency technology solves infrared correlation interference problems   LCD display signal indicator
Using LCD tube indicator to display alignment degree.   Sight aiming telescope
Convenient for customers to align the detector   Distance between beams:200mm
Distance between beams from 170mm to 200mm. Better to avoid false alarm.   "Little window" design
New designed window, no longer need to remove the shell to check the inside status.   Intelligent heating function
Built in temperature control broad working with heater will automatically heat the detector,when temperature is below 0°C.
