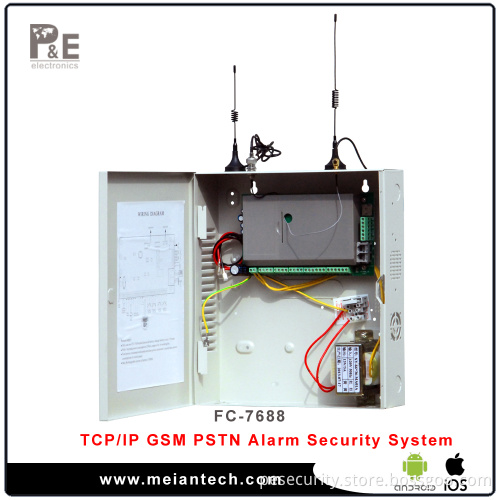

FC-7688 TCP/IP GSM PSTN Triple Network Metal Box Alarm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Art No.:	FC-7688
Dimensions	36026580MM
Housing Materials	Metal Box
Installation Location	Indoor Use Wall Mounted
LCD Size	NO
Menu Voice Guidance	YES
Kit Weight	4.30KG(Without Keypad)
Kit Accessories Included
	FC-7688 Panel*1
	F-7688 LCD *1
System Network	TCP/IP GSM & PSTN Triple Network
Number Of Users	32
Number Of Wired Zones	8
Number Of Bus Zones	88
Number Of Wireless Remotes Or Wireless Keypad Controls	8
Number Of Wired Keypad	8
Number Of Wireless Zones	32
Number Of Voice Phones	4
Number Of Wireless Doorbell	NO
Number Of Areas	4
Number Of Wireless Switch	NO
Number Of Wireless Siren	Dual Way Siren *1 One Way Siren No Limited
Outputs	1 PGM Port
GSM Antenna	External GSM Antenna
Event Log Inquiry	800
Radio Frequency	433MHz or 868MHz
Intergrated Siren	NO, External Siren Added
Backup Battery Type	12V DC, 7AH Lead Acid Battery
Max Receiving Range	100M
Max Sending Range	100M
Power Supply Unit	15V/3A
Protocols	Ademco Contact ID
Tamper Monitoring	YES
Mobile Client	ST-Panel http://www.meiantech.com/en/Support/download/
WebIE	192.168.1.200 (Default Setting)
Meian CMS	Server: wode110.com
Tel-Line CMS	2 CMS
Certifications	CE/FCC/ROHS
