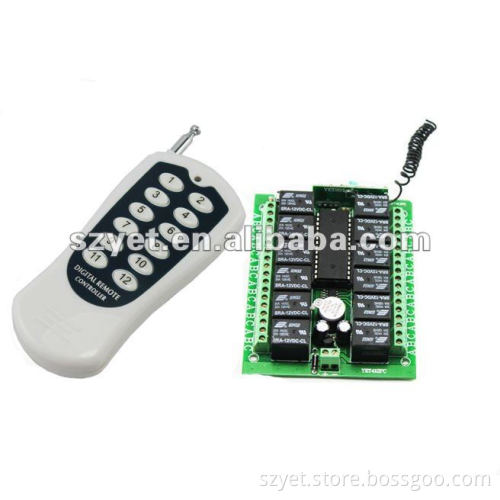

YET412 remote 12 receiver on off switch-transmitter & receiver

YET412 remote 12 receiver on off switch-transmitter & receiver

Get Latest Price

Delivery Time:: 7 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

YET412 remote 12 receiver on off switch-transmitter & receiver

Features :

1.Various cases and design for your choice

2.Metterial: Metal and ABS

3.Encoding type:learning code/ fixed code/hopping code/copy cpde (optional)

4.Frenquency: 315MHz/433MHz/868 MHz and other for your requirments.

OEM and ODM are welcomed!

Specifications:

Working voltage:DC12V
Working current:<=12mA
working frenquency:315MHz/433MHz/868MHz and other for optional
Transmit power: >=10mW
Transmission Speed:50-60KHZ
Frenquency Windage:±0.2MHz
Transmission distance:100 meters(Open space)
Oscillation resistance:As customer’s request
Chip and Operating mode:
Larning code(1527,2240,HT6P20B,HT6P20D etc,)

Fixed code (2260,2262 etc)

Hopping code(HCS301,300,200 etc.)

Copy code

Methods of operation: 1, Clear out code: To Clear up test stored rf signal memory from factory by pressing the locking key and unlock the key at the same time, two seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. Indicates that the remote control codes stored has been cleared out. 2, Duplicating (learning) Hands are holding remote control , and the other are holding the duplicating remote control, 2 remote controls put together as close as possible, while pressing the remote controls two match button,(eg: A-A’,B-B’) three seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. This indicates that this copy of the remote control buttons are same as copied on the remote control button codes . Several other keys are also according to the above approach to learning. 3, Recovery code If the code copied have been mistakenly removed the remote control, you do not worry, the remote control can restore yourself. Method is pressing (up-down eg: locking key and bell key) two buttons (metal shell remote control on the left, the plastic shell remote control on the right) at the same time ,3 seconds later, LED indicator light flashes three times, followed by a continuous fast blinking. This indicates that the original remote control codes have been restored. 4.The other way, you can delete all and relearn them again. Receiver: Usage : Controller using microprocessor intelligent control ,can be used in Garage door control, Lighting Control,Remote curtain etc .with Easy installation and simple to use , Safe and reliable features . Technology Parameter: 1. Working Volt :12V / 24V 2. Memory: 30 (learning code ) 3. Operating temp: -40°C - +80°C 4. Working frequency: 315 MHz / 433MHz 5. Sensitivity: ≥-105dBm 6. Output current: ≤10A 7. Control voltage: AC/DC For Order: Accept OEM. Can print logo on the case and package. Terms of payment:TT/Western Union optional MOQ:100 pcs Delivery time:5-7 working days after received the payment.

Application :

1.Consumer Electronic

2. Smart Home Appliance

3. Buglar Alarm System

4. Fire / Security Alarm System

5.Door / Access Control System
