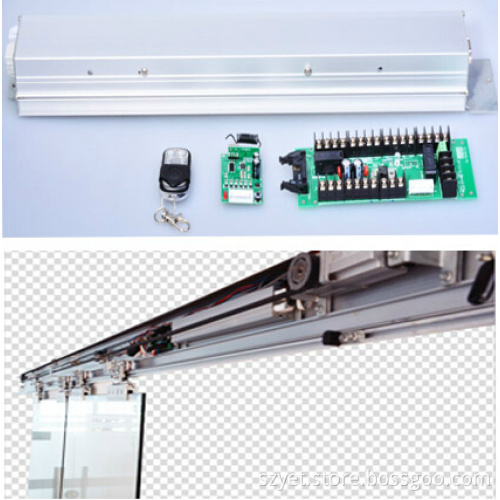

YET840 automiatic sliding door opener in China

YET840 automiatic sliding door opener in China Parameters:

Specification	Model	Model	Units of measurement
Door panels’ structure	Single-leaf door	Double-leaf door
Door weight	100	200	KG
Max. door width	5000	10000	CM
Working Voltage	AC220		V
Tracking speed	6~10		CM/S
Opening Speed	15~50		CM/S
Closing Speed	15~50		CM/S
Speed for slow opening	5~9		CM/S
Speed for slow closing	5~9		CM/S
Distance for slow opening	10~50		CM
Distance for slow closing	10~50		CM
Delay for opening	1~9		S
Partly open width	10%~90%
Power	<130		W
working temperature	-20~+85		℃

  Manual for using automatic sliding door: A: Remote control learning Press the learning key on the PCB board of remote electric lock and then release; controller will enter the status of learning, then press any button of remote control in 5S, learning process will finish with LED flashing for twice. If controller is not learned within 5S, LED will flash twice to exit learning mode. Every controller can learn at most two remote controls. If a third one needs to be learned, the first one learned before will be replaced, and so on. B: clearing code Keep pressing the button on PCB board of remote electric lock for 5S, LED will flash and clearing gets finished. C: Operation Connect the eight-pin socket of the module with eight-pin plug of remote electric lock. Make sure that all wiring is correct before turning on the power. When power is on, the automatic sliding door will measure the track automatically. The door will get closed both in and outside after tracking. Every time we press the transmitter's button, lights flash and the corresponding function is enabled. If power regained after a power failure, the door will track automatically and return to in and outside locked status in any case.

Button of remote control	corresponding function
A	Fully closed and locked mode
B	opening mode
C	Fully open mode
D	In only mode
AC	semi-open mode
AD	Out only mode

D: Description for function (1)Fully closed and locked mode: Door is closed, nothing can trigger the door open. (2)opening mode:The door is in automatic mode. Door open automatically when IR sensor triggered by people within detective areas. And will get closed once signal delay time out. (3)Fully open mode:When sliding door is in fully open mode, the door will not close automatically. (4)In only mode:When door is closed, only detectors outside can trigger the door open. When signal delay time is over, door closes automatically. (5)Semi-open mode:When door is closed, press the semi-open buttons, door opens automatically to the place correspondingly. (6)Out only mode:When door is closed, only detectors inside can trigger the door open. Once signal delay time is over, door closes automatically.   Special function: The sliding door has anti-pinch and automatic route-updating function: on the process of closing, the door will open immediately if sensor triggered. And to prevent the door from crashing, we can set a point before which the door begins to slow down till fully open or closed and thus avoid collision between door and wall.

Mode	Function	Range	Factory defaults	Units of measurement
00	Tracking speed	10~30	20	Grade
01	Normal open speed	25~99	80	Grade
02	Normal close speed	25~99	70	Grade
03	Speed for slow opening	5~25	8	Grade
04	Speed for slow closing	5~25	8	Grade
05	Distance for slow opening	10~50	20	CM
06	Distance for slow closing	10~50	20	CM
07	Pause time for open	1~9	5	S
08	Improvement is welcomed for the sake of your other requirements
09	Open and proportion of fully open	10%~90%	60%

PS: Above is preliminary information, further improvement or revision on the basis of different requirements is needed.
