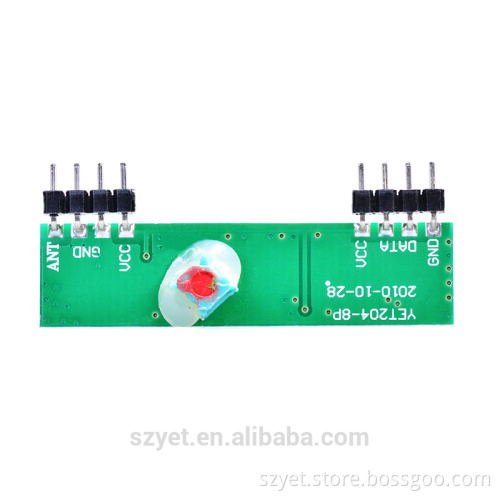

Hot ev1527 decode 433mhz receiver module YET206-RX1

Hot ev1527 decode 433mhz receiver module YET206-RX1          Transmission through RF is better than IR (infrared) because of many reasons. Firstly, signals through RF can travel through larger distances making it suitable for long range applications. Also, while IR mostly operates in line-of-sight mode, RF signals can travel even when there is an obstruction between transmitter & receiver. Next, RF transmission is more strong and reliable than IR transmission. RF communication uses a specific frequency unlike IR signals which are affected by other IR emitting sources.       This RF module comprises of an RF Transmitter and an RF Receiver. The transmitter/receiver (Tx/Rx) pair operates at a frequency of 434 MHz. An RF transmitter receives serial data and transmits it wirelessly through RF through its antenna connected at pin4. The transmission occurs at the rate of 1Kbps - 10Kbps.The transmitted data is received by an RF receiver operating at the same frequency as that of the transmitter.       Technical Data

receiving sensitivity	-103dBm
working frequency	315 MHz; 433.92 MHz
power supply	3.3V—5.5V
Low power consumption	5.0V @ 433.92MHZ,3.8—4.1mA
	5.0V ,315 MHZ,2.5—2.8mA
sustained data rate	2.4kbps.
temperature range	-30°C~+85°C

      Applications   n  Grage door and gate openers   n  Remot controls, Remote keyless entry   n  Remote fan and light control   n  Smart home system   n  Wireless alarm security systems, Automation systems etc.     Connection

Pin data	Name	Function
1	VT	Status indicator for output
2	13	Data Output
3	12	Data Output
4	11	Data output
5	10	Data output
6	VCC	Positive Power
7	GND	Power Ground
