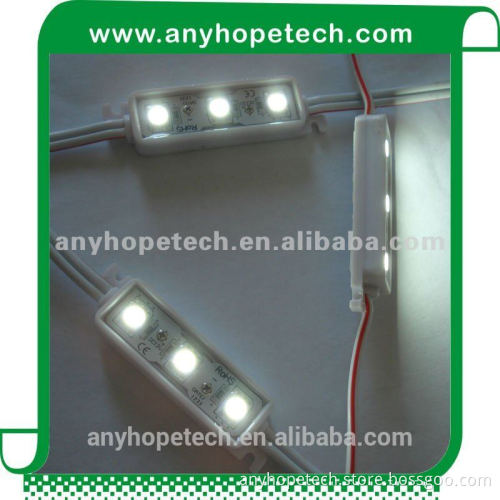

SMD 5050 0.72W per Module single color 3 pcs led module

  Product Description SMD 5050 0.72W per Module single color 3 pcs led module
    Model:AH-MDPL5050W-12-3      Widely used for home decoration use, hotels, clubs, shopping malls Architectural decorative lighting, boutique atmosphere lighting Extensively applied in Backlighting, concealed lighting, channel   Working Voltage:  DC12V, Dimmable to DC6V
Working Current:  60mA
Power:  0.72W/Module
LED QTY: 3LEDs/Module   View Angle: 120 degree
Color: Red, Yellow, Blue, Green, White, Warm white, Pink, Amber, Orange, Purple   Size: 45*15*8 mm/1.77*0.59*0.31inches         Power Factor: >0.9   Power Efficiency: >90%   Lighting Efficiency: > 80%   Certification:   CE,RoHS   Waterproof:    IP67
Weight:   0.53kgs/string   All LED's view angle is more than 120 degree.   2 years warranty.         Average life time: 50,000hrs   Operating Temperature: -20ºC ~ + 50ºC / (-4ºF ~  122ºF)   Storage Temperature: -30ºC ~ + 60ºC / (-22ºF ~  140ºF)   Max Lumens per LED:  9lm(Red), 9lm(Yellow), 15lm(Green), 10.5lm(Blue), 22.5lm(White), 21lm(Warm White)   Color Temperature:  2000K, 2200K, 2400K, 2700K, 3500K, 4500K, 5500K, 6500K, 7000K, 8000K, 10000K

Model Number	Color	Typ.Flux (LM/PC)	LED QTY (LEDs/PC)	Voltage (DC)	Power (W/PC)
AH-MDPL5050R-12-3	Red	27	3	12V	0.72
AH-MDPL5050Y-12-3	Yellow	27
AH-MDPL5050B-12-3	Blue	31.5
AH-MDPL5050G-12-3	Green	45
AH-MDPL5050W-12-3	White	67.5
AH-MDPL5050WW-12-3	Warm White	63
AH-MDPL5050P-12-3	Pink	27

    The distance between two modules,60mm-500mm is available,standard is 100mm/3.94", minimum distance is 60mm /2.36".               The single color modules connect to controller and power supplies:   Power supply should be DC12V.   Maximum 50 Modules/link/Loop.   Better to feed power through both ends of each link.   Modules should be installed in a proportional spacing to make sure the modules emitting evenly.   Be sure the postive and negative are not reversed.               Company Information          Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.          Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.         Our Services   Step (1): Quotation We will send you the quotation within 1 day according to your detailed requirements.   Step (2): Sales Contract or Proforma Invoice. We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL, UPS, FedEx, bank information and terms & conditions for detailed check.   Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)   Step (4): Production Process   Step (5): Package and Shipping   Step (6): Air Way Bill Number         FAQ   Why you should use LED lighting?   Some basic advantages of LEDs: 1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.  You and our environment will be able to benefit in many ways with this type of lighting.       Certificate:   Factory:   Welcome to visit our websie: www.anyhopetech.com
