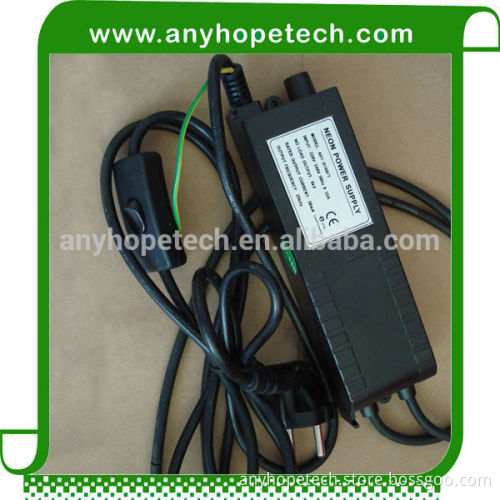

China manufacture Neon Transformers output 8kv 30mA

  Product Description China manufacture Neon Transformers output 8kv 30mA
Model: AH1-R108FT
1. Compliance with EMC and LVD IEC standard, low electromagnetic disturbance; 2. Manifold protection device: open circuit, over heat, SGFP; 3. High power factor: >0.9; 4. Wide load range and even brightness; 5. Use only indoor; 6. With Feed-Thur cord switch and IEC standard plug, excellent for small neon signs; 7. AH1-R108FT with adjustable dimmer in a wide arrangement and even brightness.


Model	AH1-R108FT
Input	220~240V 50/60Hz 0.32A
Output	8kV 30mA
Weight	0.85kgs
Packing	20pcs /19.5kgs
Packing size	742* 257 * 280mm
Diameter(mm)	7	8	9	10	11	12	13	15
Gas pressure(mmHg)	18	17	15	13	12	11	10	9
Load length in feet(clear or red neon)	12	13	15	19	22	26	29	33
Load length in feet(mercury/argon)	14	15	18	23	26	31	33	40

          Company Information         Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.
       Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.     Our Services Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.

Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL,UPS,FedEx,bank information and terms & conditions for detailed check.

Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)

Step (4): Production Process

Step (5): Package and Shipping

Step (6): Air Way Bill Number     FAQ   Why you should use LED lighting?   Some basic advantages of LEDs: 1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.  You and our environment will be able to benefit in many ways with this type of lighting.   Factory:  Welcome to visit our website: www.anyhopetech.com
