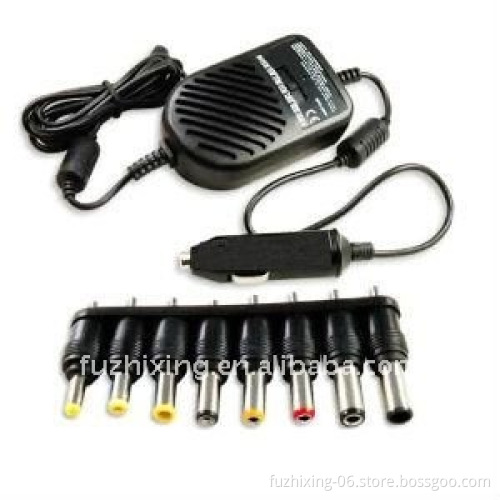

80W Laptop/NoteBook Universal Car Power Adapter

Specifications universal car cigarette lighter power adapter

1.Power LED monitor

2.7 segment voltage output

3.With 8 interchangeable tips

  Auto DC power Regulated Adaptor CAR UNIVERSAL LAPTOP/NOTEBOOK DC POWER CHARGER/ADAPTER.   Laptop Car Universal Charger Auto DC Power Adapter, Perfect for in-car use for your notebook/laptop, no more running out of batteries. This high power DC adapter is designed to power the popular brand notebook computers which require DC input from 15V to 24V while you are traveling in the car, Simply connect your laptop to your cigarette lighter socket using this power adaptor and you are all set.   Features: With Upgrade Power support 80W 8 interchangeable tips for flexible adaptability to different notebook models Adjustable output voltage, satisfy the requirement of different type of laptops Overload and short circuit protection to protect it from damage High efficiency and low energy consumption Power LED indicator, also shows the genuine output voltage that avoid damage your computer Input: DC 11-14 Volts. Output: DC15/16/18/19/20V DC 4A. max DC 22/24V 3.3A 80W max. Fuse for overload protection (10AMP)         Operating instruction:
  A. Voltage selection:
      1. Proper output voltage setting. Please check the voltage indication marked next to the input jack on your laptop. You may find the voltage in your AC adaptor or in the computer user's manual.
      2. Set the voltage switch on the body of the adaptor into the corresponding voltage of your laptop.   B. Tip polarity selection:
      1. Select a proper connector size. The polarity of the connector plugs is presented with the positive tip in centre.
      2. Insert connector output plug into your laptop
      3. Insert adaptor into vehicle lighter socket. Green LED will light to indicate proper operation. If LED fails to light. See FUSE REPLACEMENT.
      4. Turn on computer. If it dose not operate, immediately disconnect and review the above steps.    Eight Tips/Connectors: 6.30*3.00 / 6.00*1.00 / 5.50*2.50 / 5.50*2.10 / 5.50*1.70 / 4.80*1.70 / 4.00*1.70 / 3.50*1.35
