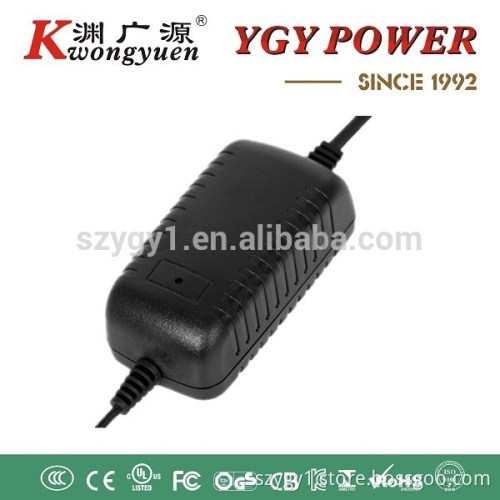

AC/DC Adapter YK03 for CCTV Camera with 30W Maximum Output, 12V, 1/2A Output Standard

Specifications AC/DC Adapter for CCTV Camera with 30W Maximum Output

1.Factory price

2.Scientific QC

3.7 to 10 days delivery

  Product Description

Model number		YK03
Input	Input connecting plug	USA/EUR/UK/AUS/Others,70cm/optional
	Input voltage	AC100-240V,50/60Hz
Output	Output connector	5.5 * 2.1mm/others, 90cm/others
	Output voltage	DC 3-24V  + / - 5%
	Max power	30W
	Ripple wave	(mVp-p):  <1%
	Linear modulate	±0.5%max
	Temperature coefficient	±0.02%/°C
	Start time	≤3s(240VAC input,io=100%)
	Guard time	≥20ms(240VAC input,io=100%)
	Output standard	12V2A
Protection	Override protection	115%-200%vA,automatic recovery
	short-circuit protection	1 channel: automatic recovery
Insulation	Insulation strength	1500VAC/10mA,1MIN
	Insulation resistance	≥30MΩ,DC 500V
Environment	Working temperature	0°C-40°C,10%-90%RH
	Store temperature	-20°C-60°C,10%-90%RH
Size	Size	93*47*29mm
	Net weight	137G

    Packaging & Shipping        Our Services 7-10 days lead time. Certificates:CE,CB,UL,FCC,GS,S-MARK,KC,CCC,ISO9001:2008.
