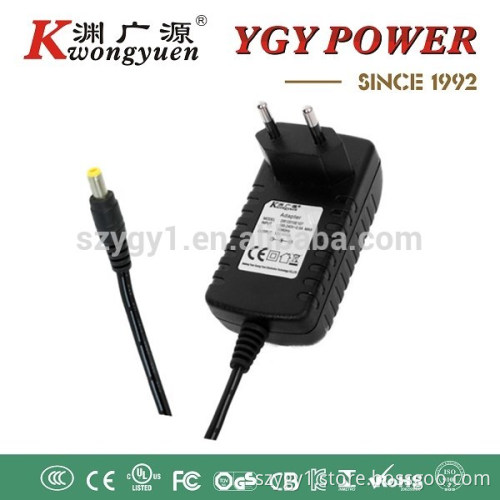

12V1A1.5A2A power adapter for camera wth EUR plug

Get Latest Price

Delivery Time:: 500 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications power adapter for camera

1.Integrated production

2.Scientific quality control

3.Short delivery time :7 to 10 days

4.Factory

Product Description

Model number		YK07
Input	Input connecting plug	EUR
Input	Input voltage	AC100-240V,50/60Hz
Output	Output connector	5.5 * 2.1mm/others, 120cm/others
	Output voltage	DC 3-24V + / - 5%
	Max power	24W
	Ripple wave	(mVp-p): <1%
	Linear modulate	±0.5%max
	Temperature coefficient	±0.02%/°C
	Start time	≤3s(240VAC input,io=100%)
	Guard time	≥20ms(240VAC input,io=100%)
	Output standard	12V1A / 12V1.5A / 12V2A
Protection	Override protection	115%-200%vA,automatic recovery
Protection	short-circuit protection	1 channel: automatic recovery
Insulation	Insulation strength	1500VAC/10mA,1MIN
Insulation	Insulation resistance	≥30MΩ,DC 500V
Environment	Working temperature	0°C-40°C,10%-90%RH
Environment	Store temperature	-20°C-60°C,10%-90%RH
Size	Size	854467mm
Size	Net weight	105G
