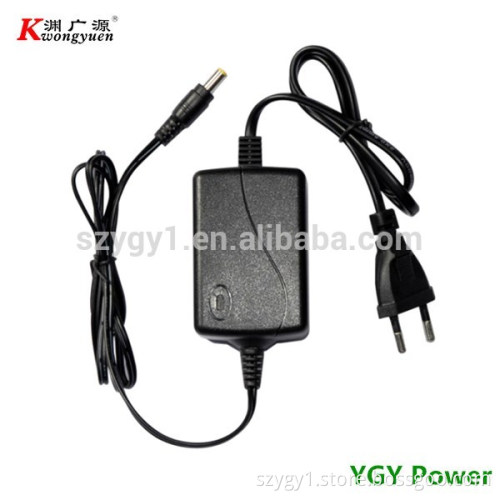

110/220AC 12V desktop switching power supply for led bulbs and CCTV camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China (Mainland)

Product Description

Specifications desktop switching power supply

1. Factory price;

2. 7-10days delivery;

3. Safe and stable.

Input	100 to 240V AC, 50/60Hz
Output power	12W series
Output voltage	12V
Output current	100mA-1000mA
Protection	Overload protection
	Output over voltage protection
	Short circuit protection
Certificate	CE power supply standard
	CE approved (EMC, LVD)
	UL
	CCC GS TUV
	FCC
Efficiency	Mini 80 %
Standard DC Connector	5.52.5 / 5.52.1 /5.51.7 / 4.81.7 /4.01.7/3.51.35/6.3*3.0 with pin inside
No Load Power Consumption	≤0.3W at Rated Voltage
Ripple And Noise	Output voltage 1%
High-Voltage test	Primary to secondary: 3 kV 5 mA 60S
Leakage Current	0.5 mA(max) at input 240V AC
Operating Temperature Range	0--40°C
Storage Temperature Range	-20 --- 85°C
High Humidity Operation	+ 40 °C and 90 ~ 95% Humidity
Dimension	1165132mm
Net weight	About 98.4gram per unit
MTBF	50,000 hours
Insulation Resistance:Primary to Secondary	50 Meg. Ohms min. 500VDC
Application	Water purifier, LED, Medical machine,CCTV camera, LCD, Set-top box, DVR, Router, Modem,etc.
Packing A	Qty: 100PCS/CTN Weight:12.28KG
	MEA: L47cmW33cmH33cm
	Packing Material:PE bag+white box+carton
Packing B	Qty: 100PCS/CTN Weight:12.28KG
	MEA: L47cmW33cmH33cm
	Packing Material:PE bag+Color gift box+carton
