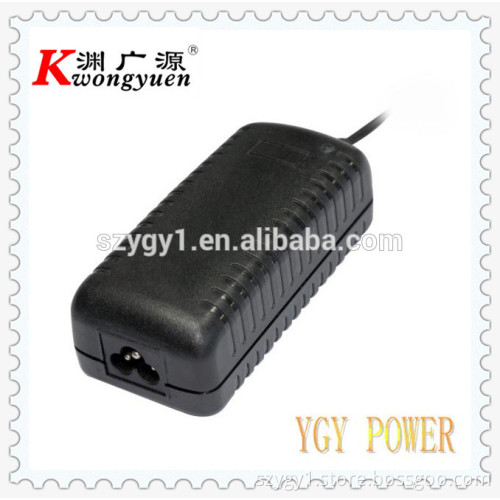

AC DC 12V 5A 60W desktop power adaptor

Specifications 1)12v /5a ac dc desktop power supply

2)CE/FCC/RoHS

3)One year warranty

4)Factory direct price

5)Offer sample

product: product parameter:

Model number		YK21
Input	Input connecting plug	USA/EUR/UK/AU/others, C6/C8/C14/others
	Input voltage	AC100-240V, 50/60Hz
Output	Output connector	5.5 * 2.1mm/others, 90cm/others
	Output voltage	DC 3-24V  + / - 5%
	Max power	60W
	Ripple wave	(mVp-p):  <1%
	Linear modulate	±0.5%max
	Temperature coefficient	±0.02%/°C
	Start time	≤3s(240VAC input,io=100%)
	Guard time	≥20ms(240VAC input,io=100%)
	Output standard	12V5A
Protection	Override protection	115%-200%vA,automatic recovery
	short-circuit protection	1 channel: automatic recovery
Insulation	Insulation strength	1500VAC/10mA,1MIN
	Insulation resistance	≥30MΩ,DC 500V
Environment	Working temperature	0°C-40°C,10%-90%RH
	Store temperature	-20°C-60°C,10%-90%RH
Size	Size	120*54*37mm
	Net weight	134G
