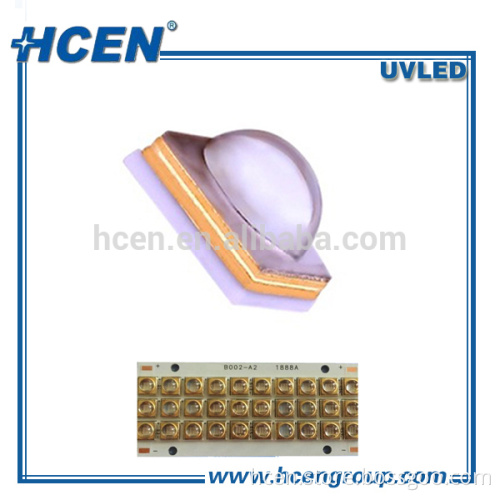

3w Uv 365nm Led Component For Gel Curing Machine

3w Uv 365nm Led Component For Gel Curing Machine     Features          1. CMH real inorganic package      2. Hermetic package      3. Dimension 4.5mm×4.5mm×2.9mm      4. Long operating life      5. High reliability     6. Superior ESD protection      7. RoHS compliant      Applications        1. Fluorescent spectroscopy      2. Sensors and monitors      3. Bio-analysis/detection      4. Phototherapy      5. UV curing      Product Description      Characteristics of UV LED  1. Absolute Maximum Ratings at TA=25°C

Parameter	Symbol	Units	CMH245A 1V14Z1	CMH245A 1V20Z1	CMH245A 2V23Z1	CMH245A 2V32Z1	CMH245A 4V08Z1	CMH245A 4V22Z1
Peak Wavelength[1]	λp	nm	390-400	390-400	380-390	380-390	360-370	360-370
Radiation Flux [2]	Φe[3]	mW	900-1000	800-900	800-900	800-900	700-800	400-500
Forward Voltage [4]	VF	V	3.4-4.0	3.4-4.0	3.4-4.0	3.4-4.0	3.6-4.0	3.6-4.0
Thermal Resistance[5]	Rth	℃/W	10	10	10	10	10	10
Spectrum Half Width	Δλ	nm	13	13	13	13	13	13
View Angle	2θ1/2	deg	60	60	60	60	60	60

    Notes:
[1].Peak wavelength measurement tolerance:±3nm [2].Radiant flux measurement tolerance:±10% [3].Φe is the total radiant Flux as measured with an integrated sphere [4].Forward voltage measurement tolerance:±3% [5].Rth is the thermal resistance between chip junction to PCB board bottom   2. Absolute Maximum Ratings (Ta=25℃)    Notes: (1) Operating the LED beyond the listed maximum ratings may affect device reliability          and cause permanent damage.
(2) These or any other conditions beyond those indicated under recommended                    operating conditions are not implied.
(3) The exposure to the absolute maximum rated conditions may affect device reliability.           Packaging & Shipping       Our Services   Sample Availability & Policy:   We will provide samples of products upon customer's request. To help us decide favorably on sample requests, we ask interested customers to send comprehensive buyer information for our review.       Guarantees/Warranties/Terms and Conditions:   We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any products found to be defective under normal use.       Export/Import Processing Support:   We are according to your requirements and provide export services to your location via express delivery.       After Sales Service:   Our customer service personnel are experienced product specialists who can answer your questions five days a week from 9am to 5am. Please contact us today.       Skype:Rita_Zhl       Company Information   HCEN group is the professional manufactuer of UV LED emiter.  R&D team member back from Japan and Germany.  we can provide customized solution for your uv led applicaiton case.   Feel free to contact: Shenzhen HCEN Technology Co., Ltd. Add: RM17EF, Tower B NEO Bldg, Futian Distric ,Shenzhen, China Web:www.hcengroup.com
