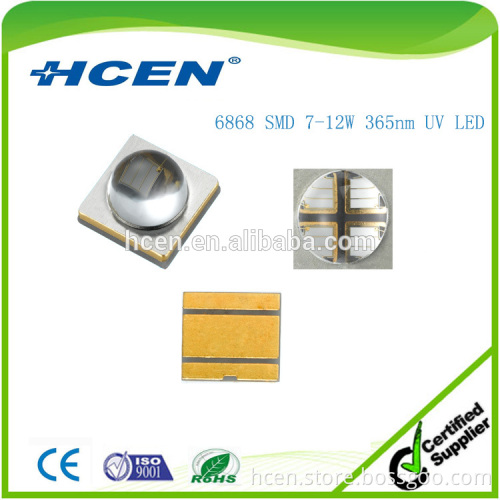

Wholesale high power 6868 SMD 10W 365nm uv led for uv gel curing machine

  Product Description   Features CMH real inorganic package Hermetic package Dimension:6.8mm*6.8mm*3.7mm Long operating life High reliability Superior ESD protection RoHS compliant   Applications Fluorescent spectroscopy Sensors and monitors Bio-analysis/detection Phototherapy UV curing     Characteristics of UV LED:   1.Electrical/optical Characteristics(Ta=25°C,RH=40%)

Parameter	Symbol	Units	CMH268A4V08Z3
Peak      Wavelength	λp	nm	360-370
Radiation Flux	Φe	mW	3000-3200
Forward Voltage	VF	V	14-16
Thermal    Resistance	Rth	°C/W	5
Spectrum Half        Width	Δλ	nm	13
View Angle	2θ 1/2	deg	60

  Notes:   [1].Peak wavelength measurement tolerance:±3nm [2].Radiant flux measurement tolerance:±10% [3].Φe is the total radiant Flux as measurement with an intergrated sphere [4].Forward voltage measurement tolerance:±3% [5].Rth is the thermal resistance between chip junction to PCB board bottom   2. Abosolute Maximun Ratings(Ta=25ºC)

Parameter	Symbol	Units	CMH268A4V08Z3
Maximum Rating Forward    Current	IFmax	mA	700
Maximum Rating     Junction        Temperature	Tjmax	°C	125
OperatingTemperature           Range	Topr	°C	-40~+85
Storage Temperature           Range	Tstg	°C	-40~+100

  Notes:        Operating the LED beyond the listed maximum ratings may affect device reliability and cause permanent damages.These or any other conditions beyond those indicated under recommended operating conditions are not implied. The exposure to the absolute maximum rated may affect device reliability.
Characteristics Diagrams:         Product Applications       Our Advantages UV LEDS offer many advantages toward UV lamps:     1.Concepts of CMH technology:       It is a kind of package technology which adopts ceramic,metal,hard glass as package materials. It is suitable for vacuum encapsulation,especially suitable for ensuring reliability of deep UV products.   2. Main advantages of CMH technology: Long operating life High reliability Superior ESD protection             Packaging & Shipping         Packing Informations:IN anti-static package then in Carton 1.Payment term: T/T, L/C ,Western Union,Paypal .,ect. 2.Delivery:Carrier is available by express,or sea shippiung or ordinary air cargo.   Company Information         Shenzhen HCEN Technology CO.,LTD located in the east bank of the Pearl River Delta and near Hong Kong.           HCEN brand is registered  in October 17, 2014, with registered capital is RMB200 million RMB.           Headquartered in Shenzhen, HCEN also have branch in Shanghai, Beijing and Hong Kong. We have marketing and technical supporting teams in Munich Germany, Bangkok Thailand and Malaysia .          HCEN aimed to be a global new technology producer and solution  provider. We dedicated in UV (Ultraviolet) LED diode ,curing system and diverse application of UV LED .          As a promoter of UV LED technology, HCEN own professional UV LED R&D team ,soulution engineers to give full support of our customer. HCEN invest about 10%-20% of the sales volume to develop new products   FAQ Q1:Are you a Factory or Trading Company?       Answer: Factory.   Q2:How can I visit your factory?       Answer:Since you come to Shenzhen,contact us before you come,we will pick you up directly to our company.   Q3:When can I get the price?     Answer:Within 24 hours we get your inquiry and confirm the needs and solution.   Q4:How can I get a sample to check your quality?     Answer: After price and payment confirmation, we are honored to send you.   Q5:Can you provide a solution for UV LED substitute for UV Lamp ?    Answer: Pls provide UV Lamp data heet,wavelength,required optial power or radiant intensity . radiant distance and curing area,more info. will help us to provide a exact solution for your application.
Q6:What’s the universal Lead-Time for order delivery?    Answer:1)7-15 Working days for led diodes undering quantity of 10k.               2)10-30 Working days for curing system and UV LED module               3)Samples will be delivered as soon as payment confirmed .   Q7:What’s the payment terms?    Answer:We can accept T/T,and Paypal.
