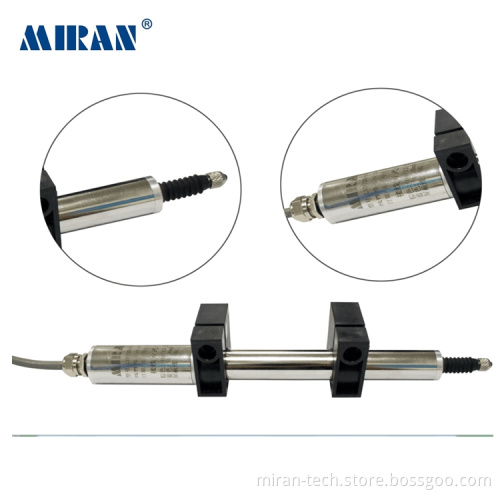

MIRAN Utmost High Reliable LVDT20 Displacement Linear Position Sensor

Product Description MIRAN Utmost High Reliable LVDT20 Displacement Linear Position Sensor

Effective Stroke(mm)	5	10	20	25	40	50	100
Stroke A (mm) (Current and RS485 Output)	69	69	69	69	69	69	69
Stroke A (mm)(Voltage Output)	69	69	69	69	69	69	69
Stroke B (mm)	117	140	168	188	243	243	338
Rod length exposed free state C(mm)	20	30	25	30	45	55	105
Output Signal	0~10VD; 4~20mA DC
Linearity	≤0.25%
Repeatability	≤10um
Resolution	≤0.001mm
Temperature Range	-25℃~+85℃
Shock Resistance	250g/11msec
Vibration Allowed	10g/2KHZ
Temperature Coefficient	≤0.01%/℃
Dynamic Characteristic	3HZ
Sensitivity	≤0.025%/℃
Power Supply	12~24VDC
Operating Current	Voltage Output LVDT: ≤12mA;     4-20mA Output LVDT:4-20mA

      Related Products MIRAN Utmost High Reliable LVDT20 Displacement Linear Position Sensor     MIRAN PME12 50mm to 1000mm Magnetic Resistance Displacement Sensor https://www.alibaba.com/product-detail/MIRAN-PME12-50mm-to-1000mm_60669337143.html?spm=a2747.manage.list.25.ZVvfb5   Company Information MIRAN Utmost High Reliable LVDT20 Displacement Linear Position Sensor      My Dear Friends,welcome to visit our company!   Shenzhen Miran Technology Co., Ltd. is the largest Linear Position Sensor manufacturer in China.
Since 2003 we have been developed and produced Linear Position Sensor(brand:MIRAN,LinecSKI,WANSUNGM),Wire Rope Potentiometer,Magnetostrictive Liquid Level Sensor,Angle Sensor,Lubricating Pump(Oil/Grease/Butter),LVDT,Eddy Current Sensor, and many other Motion control products to support many different industries. Our Products have been widely used in injection molding machines,die casting machines,rubber machines,footwear machines,EVA injection machines,bottle blowing machines,woodworker machines, hydraulic machinery,level control, suspension stroke control,construciton machinery,seaport machinery,industrial robots,etc.   We can offer you the competitive advantage products. We also support to put your logo on the products if you need.
