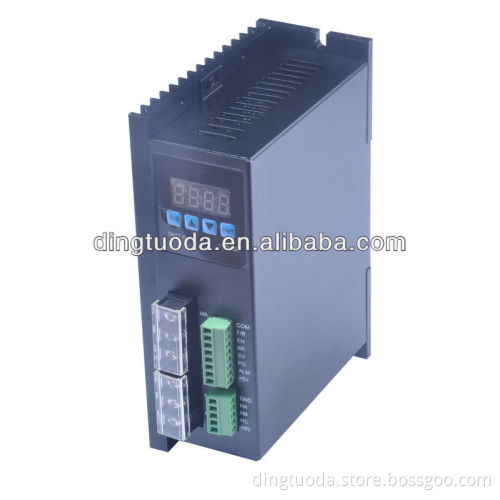

750W high voltage brushless motor driver

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications Newest PWM technology tu ensure brushless motor with high speed, small vibration, low noise, high reliablity,high stability.

characteristics	symbol	Value	Unit
Rated Voltage	U	220	DC
Under Voltage	U	85	DC
Over Voltage	U	265	DC
Continuous Current	Idauer	4.8	A
Peak Current	Imax	7.2	A
Variable Speed Range		0~80000	RPM
Efficiency		90	%
Power for hall sensor	VCC	5.0	VDC
Alarm		I-Alarm Hall-Alarm Vmax-Alarm Vmin-Alarm Stall-Alarm
Run/stop(EN)	Logic level	Low -10~0.5V High 3~30V	V
DIR	Logic level	Low -10~0.5V High 3~30V	V
BAK	Logic level	Low -10~0.5V High 3~30V	V
PG	Logic level	Low -10~0.5V High 3~30V	V
Hall sensor input	Logic level	0~5	V
Temperature protection	Common style	<-10 or >70	°C
Temperature protection	Industry style	<-40~>85	°C
Operating temperature	Common style	-10~+70	°C
Operating temperature	Industry style	-40~+85	°C
Dimensions		17513560	MM
Weight		0.8	kg
