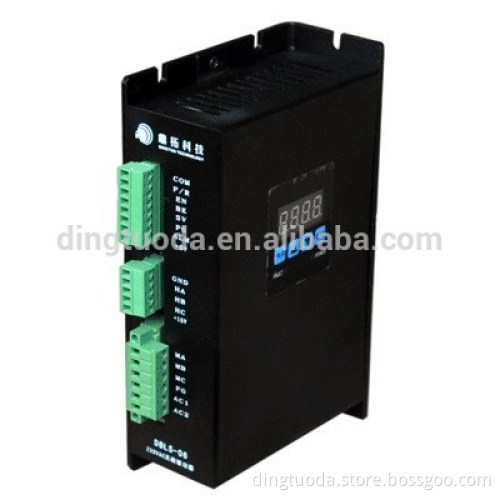

400W high voltage BLDC motor driver

characteristics

symbol

Value

Unit

Rated Voltage

U

220

VAC

Under Voltage

U

85

VAC

Over Voltage

U

265

VAC

Continuous Current

Idauer

1.9

A

Peak Current

Imax

2.7

A

Variable Speed Range

0~40000

RPM

Efficiency

90

%

Power for hall sensor

VCC

15

VDC

Alarm

I-Alarm Hall-Alarm

Vmax-Alarm Vmin-Alarm

Stall-Alarm

Run/stop(EN)

Logic level

0~5

V

DIR

Logic level

0~5

V

BAK

Logic level

0~5

V

PG

Logic level

0~5

V

Hall sensor input

Logic level

0~5

V

Temperature protection

Common style

<-10 or >70

°C

Industry style

<-40~>85

°C

Operating temperature

Common style

-10~+70

°C

Industry style

-40~+85

°C

Dimensions

175*115*50

MM

Weight

0.7

kg
