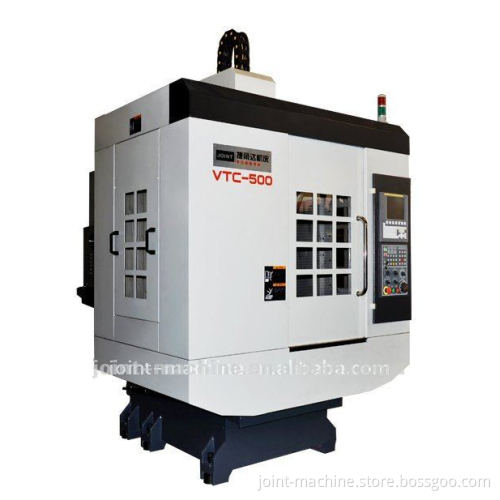

JOINT High Precise Drilling and Tapping center VTC500

  Welcome to Shenzhen Joint Indsutry Co.,Ltd. Features: 1. Mehanite casting,computer analysis facilities are used in its manufacturing,    wide distance slide way makes outstanding rigidity. 2.Pre-pressed and pre-tense double screw assures feeding high accuracy.    Special design of slide way and auto lubrication system ensures the accuracy    long-time of the machine. 3.Precisely scrapped and Turcite B coated slide way makes machines run smoothly. 4.X,Y and Z axis are assembled with hard way,The slide way is hardened and heat    treated,and the other side is coated by Turcite B,and manually scrapped.Machine    body is built into one piece,so the machine could be heavy loaded.   Specification:Vertical Tapping machine VTC500

Model	VTC500
Table size	620*420mm
Travel (Longitude (X))	500mm
Travel (Crossward (Y))	400mm
Travel (Vertical (Z))	300mm
Distance between spindle and table	200-500mm
Distance between spindle and column	420mm
Spindle (Rotation speed)	10000 RPM
Spindle (Taper)	BT30
Spindle (Motor)	5.5kw
Rapid feed (Longitude(X))	48m/min
Rapid feed (Crossward(Y))	48m/min
Rapid feed (Vertical(Z))	48m/min
Cutting feed	10m/min
Positioning accuracy	0.005mm/m
Min enactment move unit	0.001mm
Dimension(L*W*H)	1650*2050*2200mm
Net weight	2700kg
Max loaded of table	200kg

  Accessories: 1.Standard accessoires: Control system Electronic hand wheel Cover Auto lubrication of slide way Coolant system Operation manual of machine Operation manual of control system Cutting fluid and filter system Stainless steel covers of slide way Alarming light Hammer balance Tool and toolbox   2.Optional accessories: Milling chuck and tool unlock Arm type or umbrella type tool magazine Auto chip conveyor Oil coolant The fourth axis NC dividing head or rotary table Heat exchanger   After-sales services: Warranty is a year, we would offer the parts( quality problem) free of charge  during this period. Overseas service need to be charged extra.   Photos: 1.Workshop: Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.      2.Research and Development team: We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.     3.Certificate and Honour: 1.8 Intellectual property rights and 5 the patents 2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field. 3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China. 4.In 2011,we have been granted as” National Grade HI-Tech Enterprise”. 5.We have introduced ISO9001:2008 in 2009. 6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.    4.Accessories for VTC500:    5.Exhibition in Shenzhen:
