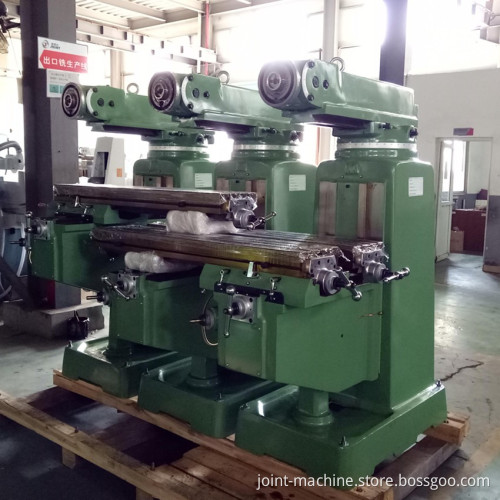

China Brands Milling head/milling machine body/ mill machine for sales 4M

China Brands Milling head/milling machine body/ mill machine for sales 4M Specifications  1.Taiwan original milling head,NSK P4 spindle bearing;
2.Twice precisely scraping;
3.OEM Manufacturer;
4.Step speed;
5.CE.    Features: 1.Taiwan original milling head,NSK P4 spindle bearing;
2.Twice precisely scraping;
3.Head tilt angle ±45°/±90°;
4.OEM MANUFACTURER; 5.For electric parts, mould and hole, slot and frame processing; 6.Twice precisely scraping Fit for boring, milling, drilling and boring, tolerance is 0.005-0.012mm; 7.Spindle tolerance 0.002mm; 8.Parallel value between tables movement and table: X axis 0.015mm, Middle 0.01mm, Y axis 0.01mm.       Specification:Milling machine 4M

Model	4M
Table size	1270*254*90mm
Travel (Longitude)	900mm
Travel (Cross ward)	395mm
Travel (Vertical)	340mm
Travel of spindle quill	127mm
Max.Distance from the spindle nose to table	400mm
Spindle (Rotation speed)	80-5440RPM/(16 grades)
Spindle (Taper)	R8/NT30
Spindle (Rated power)	3HP
Tilt Angle (Forward and Backward)	±45°
Tilt Angle (Left and Right)	±90°
Dimension	1500*1700*2150mm
Net weight	1280kg

  Accessories: 1.Standard accessories: Oil pump Working light Draw bar Way cover Operation manual Tool and toolbox 2.Optional accessories: R8 collects Clamping kits 6" vise Coolant system DRO Power feed Elevating motor     If you only need milling head and milling machine body ,pls contact with us       After-sales services:   Warranty is a year, we would offer the parts( quality problem) free of charge  during this period. Overseas service need to be charged extra.                     Email to this supplier
