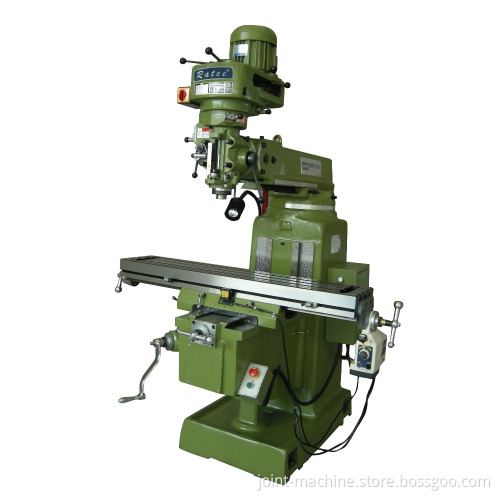

Economic and great quality vertical turret milling machine 6E

Product Description 1.Taiwan original milling head,NSK P4 spindle bearing;

2.Twice precisely scraping;

3.Head tilt angle ±45°/±90°;

4.OEM MANUFACTURER;

5.For electric parts, mould and hole, slot and frame processing;

6.Twice precisely scraping Fit for boring, milling, drilling and boring, tolerance is 0.005-0.012mm;

7.Spindle tolerance 0.002mm;

8.Parallel value between tables movement and table: X axis 0.015mm, Middle 0.01mm, Y axis 0.01mm.

Model	6E
Table size	1370*305*85mm
Table travel	720*415*385mm
Travel of spindle quill	127mm
Max,distance from spindle nose to table	520mm
Spindle rotation speed	66-4530/16grades/50HZ
Spindle tapper	NT40
Spindle rated power	5HP
Forward and backward tilt angle	+-0
Left and right tilt angle	+-90
Dimension	1600*1850*2400mm
Net weight	1900mm

X/Z Axies is Dovetail way, Y Axies is Square way
Products Show Our Service Warranty is a year, we would offer the parts( quality problem) free of charge during this period. Overseas service need to be charged extra.
Our Company Packing & Delivery Our Certifications Certificate and Honour: 1.8 Intellectual property rights and 5 the patents

2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field.

3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China.

4.In 2011,we have been granted as” National Grade HI-Tech Enterprise”.

5.We have introduced ISO9001:2008 in 2009.

6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.
