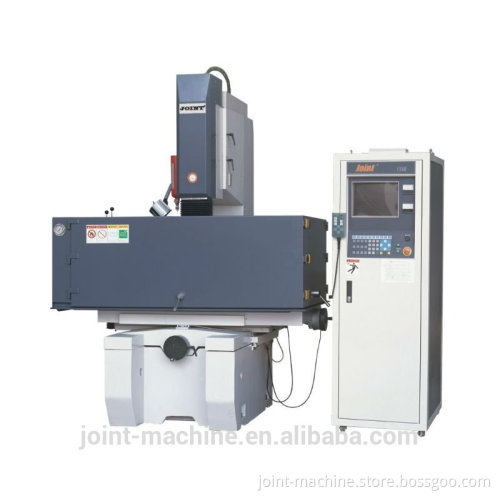

Electric Discharge Machine EDM machine ZNC650

Electric Discharge Machine EDM machine ZNC650 Features: 1.Best quality cast,time aging; 2.Deep-hole processing without carbon accumulation; 3.Imported sealed ballscrew and electrode head; 4.Japan lineal way and servo motor; 5.Taiwan control system GTEK   Specification:Electric discharge machine ZNC650

Model	ZNC650
Size of oil container	1650*1100*630mm
Table size	1050*600mm
Table travel	650*550*250mm
Electrode head	400mm
Max.distance between electrode head and working table	850mm
Max.loaded of electrode head	200kgs
Dimension	1930*1920*2480mm
Net weight	3200kgs
Filtered container (cubic)	980L
Filtered container (net weight)	300kgs

  Accessories: 1.Standard accessories:    Magnet check    Fire extinguisher    Tool and toolbox    Operation manual   2.Optional accessories:    NC shaking head   After-sales services:  Warranty is a year, we would offer the parts( quality problem) free of charge  during this period. Overseas service need to be charged extra.    Photos: 1.Workshop: Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.   2.Research and Development team: We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.     3.Certificate and Honour: 1.8 Intellectual property rights and 5 the patents 2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field. 3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China. 4.In 2011,we have been granted as” National Grade HI-Tech Enterprise”. 5.We have introduced ISO9001:2008 in 2009. 6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.     4.Accessories for EDM:
