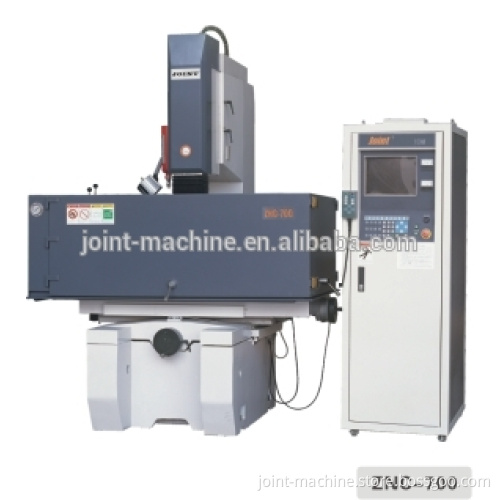

Low cost and Taiwan brand controller EDM Machine ZNC-700

Low cost and Taiwan brand controller EDM Machine ZNC-700   FEATURES 1. Taiwan CTEK controller 2. Imported ballscrew and guideway 3. Taiwan electric components 4. One piece machine body 5. Large torque servo motor with fast responding speed. 6. With Fire extiguisher 7.ZNC and CNC and Mirror type are available. 8. Double heads EDM are aslo available.   SPECIFICATIONS

Model	ZNC MACHINE
Control mode & axis No.	NC with close circuit/Single Z axis control
Min.setting value.	0.005(0.001)mm
Max.setting value.	9999.995(9999.9999)mm
Coordination system	(INC),(ABS)
Screen	15''TFT
Control system	Industrial PC
Moving velocity of controller	0.005mm (Per Unit)*1,*5,*10
Procedure in store	0-999groups
Max.current for processing	50      75    100 A
Input rated power	5        6       10  A
Max.cutting processing speed	360    560   700 mm²/min
Consumption of the electrode head	<0.2%
Best surface rough	0.25μmpa
Dimension	620*860*1850mm
Net weight	210Kg



Model	ZNC-700
Size of oil container	1650*1100*630mm
Table size	1050*600mm
Table travel (Longitude)	700mm
Table travel (Crossward)	550mm
Table travel (Vertical)	250mm
Electrode head	380mm
Max.distance between electrode head and working	850mm
Max.load of electrode head	200Kg
Max.load of table	2000Kg
Dimension(L*W*H)	2000*1710*2360mm
Net weight	2950Kg
Filter container (Cube)	980L
Filter container (Net weight)	300kg

   After-sales services Warranty is a year. parts in the warranty would be free of charge due to its quality problem. Overseas service needs to be charged extra.   Workshop Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.   Certificate and Honour 1.8 Intellectual property rights and 5 the patents 2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field. 3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China. 4.In 2011,we have been granted as "National Grade HI-Tech Enterprise". 5.We have introduced ISO9001:2008 in 2009. 6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.
