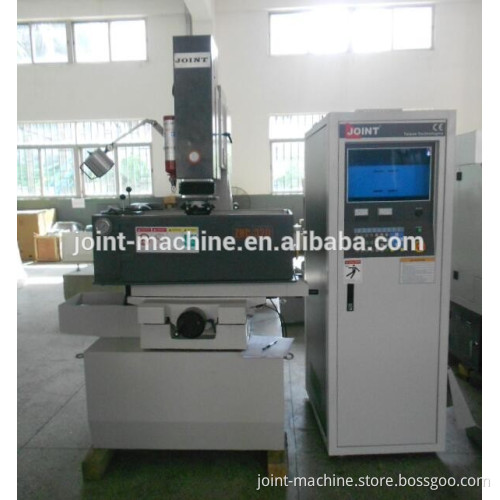

Factory price and Taiwan control system EDM ZNC-320

Factory price and Taiwan control system EDM ZNC-320 Stability And Reliability Quality For Mould Processing Full size machine could meet with all requirements of mould processing Famous Taiwan brand controller, reliable and accuracy All keys are from Taiwan and Japanese top brands SPECIFICATIONS

Model	ZNC MACHINE
Control mode & axis No.	NC with close circuit/Single Z axis control
Min.setting value.	0.005(0.001)mm
Max.setting value.	9999.995(9999.9999)mm
Coordination system	(INC),(ABS)
Screen	15''TFT
Control system	Industrial PC
Moving velocity of controller	0.005mm (Per Unit)*1,*5,*10
Procedure in store	0-999groups
Max.current for processing	50      75    100 A
Input rated power	5        6       10  A
Max.cutting processing speed	360    560   700 mm²/min
Consumption of the electrode head	<0.2%
Best surface rough	0.25μmpa
Dimension	620*860*1850mm
Net weight	210Kg



Model	ZNC-320
Size of oil container	880*520*330mm
Table size	600*300mm
Table travel (Longitude)	300mm
Table travel (Crossward)	200mm
Table travel (Vertical)	180mm
Electrode head	180mm
Max.distance between electrode head and working	420mm
Max.load of electrode head	100Kg
Max.load of table	800Kg
Dimension(L*W*H)	1300*1250*1200mm
Net weight	1150Kg
Filter container (Cube)	250L

   Accessories Working light Oil box / tank  Electric cabinet  Oil nozzle Filter box Anti-fire detective sensor After-sales services Warranty is a year, we would offer the parts( quality problem) free of charge  during this period. Overseas service need to be charged extra.                      FAQ Q: Are you trading company or manufacturer ? A: We are factory. Q: How long is your delivery time? A: Generally it is 5-15days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity. Q: What is your terms of payment ? A: 30% in advance.and the rest payment should pay before delivery. Q: How many years have your company established? A: 20 years, our company built in 1995.
