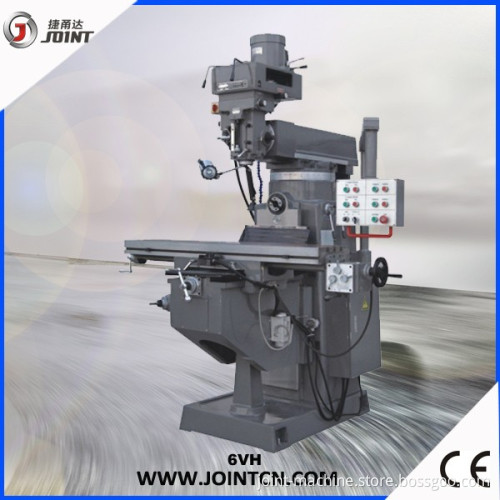

JOINT-VH serials milling machine 6VH

  horizontal and vertical milling machine horizontal and vertical milling machine Specifications  1.Table size:1270*254*90mm;Travel:900*370*360mm  2.R8/NT30/NT40 Spindle taper
3.CE Certification
4.Precise sealed ballscrew

  Features Application fields:sewing machine ,metal parts,shoes mould ,clocks etc Fit for the semi-rough,precise processing Taiwan milling head and ball screw Power feed or Mechanic feed is optional Vertical mill,horizontal milling and 45 degree mill and slant mill could be performed by this machine    milling machine 6VH

Model	6VH
Table size	1370*330mm
Travel (Longitude)	1000mm
Travel (Cross ward)	400mm
Travel (Vertical)	420mm
Travel of spindle quill	150mm
Max.Distance from the spindle nose to table	600mm
Spindle (Rotation speed)	vertical:75-3600RPM/(16 grades)
Spindle (Taper)	NT40
Spindle (Rated power)	5HP
Tilt Angle (Forward and Backward)	±45°
Tilt Angle (Left and Right)	±90°
Dimension	1900*1750*2450mm
Net weight	2200kg

  10.Standard accessories: Oil pump Working light Draw bar Way cover Operation manual Tool and toolbox 11.Optional accessories: NT40 Milling chuck Clamping kits 6" vise Coolant system DRO Power feed Elevating motor      After-sales services:   Warranty is a year, we would offer the parts( quality problem) free of charge  during this period. Overseas service need to be charged extra.   Our Factory         1.Research and Development team:   We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field       2.Workshop: Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.      3.Certificate and Honour: 1.8 Intellectual property rights and 5 the patents 2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field. 3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China. 4.In 2011,we have been granted as” National Grade HI-Tech Enterprise”. 5.We have introduced ISO9001:2008 in 2009. 6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.         SHENZHEN FAIR
