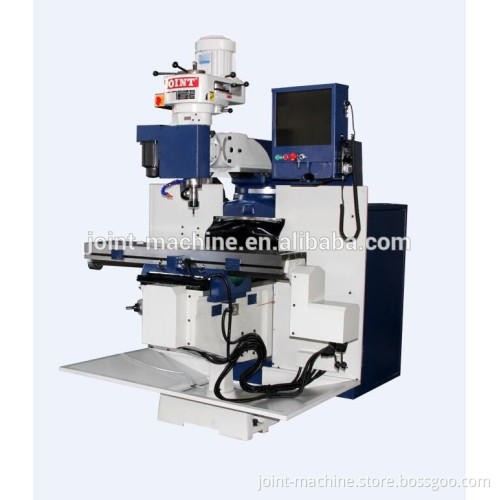

Cheap 3 axis cnc milling machine for sale China manufacturer 4KJ-B

Cheap 3 axis cnc milling machine for sale China manufacturer 4KJ-B Specifications ♦ Based on windows XP platform, Joint intelligent controller is designed to have more user friendly applications ♦ With Z axes servo motor driving, the machine can realize Z axes auto control high precision processing ♦ X/Y/Z axes adopt ball screw, which can make sure accurate positioning by pitch feedback ♦ X/Y/Z axes servo motor helps realize three-axes auto control and improve the feed speed and processing accuracty

Model	4KJ-B
Table size	1270*254*90 mm
T slot (W*N*D)	16*3*65 mm
X axis travel	710 mm
Y axis travel	340 mm
Z axis travel	105 mm
Knee travel	340 mm
Max.distance between spindle and table	0-400 mm
Rated power	3HP(2.2KW)
Spindle taper	R8(NT30)
Rotation speed	80-4530(16speed) rpm
Rapid feed (X/Y/Z)	5/5/4 m/min
Cutting feed	2 m/min
Dimension	1500*1700*2150 mm
Net weight	1400 kg

  After-sales services: Warranty is a year, we would offer the parts( quality problem) free of charge  during this period. Overseas service need to be charged extra.   Workshop Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.   Certificate and Honour 1.8 Intellectual property rights and 5 the patents 2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field. 3.From 2004 to 2007,we have been granted with "Top 100 Metal Cutting Machine Tool Manufacturers" in China. 4.In 2011,we have been granted as "National Grade HI-Tech Enterprise". 5.We have introduced ISO9001:2008 in 2009. 6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.
