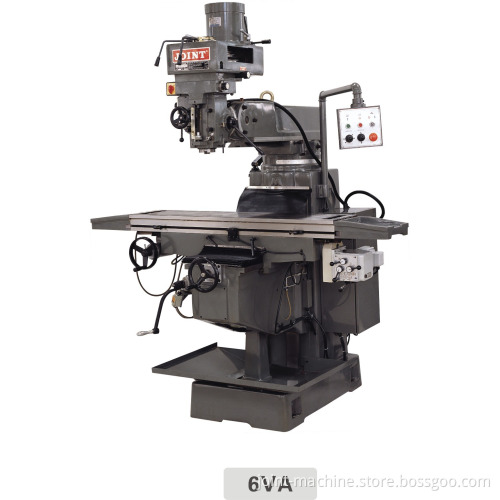

Imported milling head high precision vertical turret milling machine 6VA

High quality and Taiwan original milling head vertical milling machine 6VA Product Description                                                               1.Taiwan original milling head,NSK P4 spindle bearing;

2.Twice precisely scraping;

3.Head tilt angle ±45°/±90°;

4.OEM MANUFACTURER;   5.For electric parts, mould and hole, slot and frame processing; 6.Twice precisely scraping Fit for boring, milling, drilling and boring, tolerance is 0.005-0.012mm;

7.Spindle tolerance 0.002mm;

8.Parallel value between tables movement and table: X axis 0.015mm, Middle 0.01mm, Y axis 0.01mm.

Model	6VA
Table  size	1370*330*90mm
Table travel	850*390*450mm
Travel of spindle quil	150mm
Max.Distance from the spindle nose to table	570mm
Spindle (Rotation speed)	80-5440(16speed)/60HZ
Spindle (Taper)	NT40
Spindle (Rated power)	5HP
Tilt Angle (Forward and Backward)	±45°
Tilt Angle (Left and Right)	±90°
Dimension	1600*2000*2450MM
Net weight	2200kgs

  Products Show                                                                      Accessories: 1.Standard accessories:             2.Optional accessories: Oil pump                                              R8 collects Working light                                      Clamping kits  Draw bar                                             6" vise Way cover                                           Coolant system Operation manual                            DRO Tool and toolbox                               Power feed                                                              Elevating motor     Our Service                                                                             After-sales services: Warranty is a year, we would offer the parts( quality problem) free of charge during this period. Overseas service need to be charged extra.   Our Company                                                                               Packing & Delivery                                                                  Packing Details  : Three  sets will be put in one wooden cases  2.2*1.55*2.05mm Delivery Details : 15-30 will delivery in SHENZHEN    Our Certifications                                                                     1.8 Intellectual property rights and 5 the patents
2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field.
3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China.
4.In 2011,we have been granted as” National Grade HI-Tech Enterprise”.
5.We have introduced ISO9001:2008 in 2009.
6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.   FAQ                                                                                      Q: Are you trading company or manufacturer ? A: We are a factory. Q: How long is your delivery time? A: Generally it is 5-15days if the goods are in stock. or it is 15-20days if the goods are not in stock, it is according to quantity. Q: What is your terms of payment ? A: 30% in advance.and the rest payment should pay before delivery.   Q: How many years have your company established? A: 20 years, our company built in 1995.
