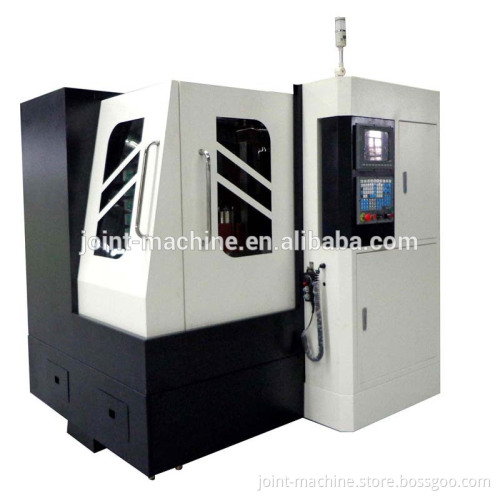

High quality and stability 3 axis /4 axis CNC Engraving Machine CM-650B

High quality and stability 3 axis /4 axis  CNC Engraving Machine CM-650B Best casting,Beam Column Gantry Frame Design with High rigid design.Fit machine fast speed running Independent coolant system for spindle,make for the stability and durability of spindle Imported brand linear guideway and ball screw,Japan servo motor and driving.Assure machine high accuracy and stable performance  Features X,Y,Z Axis are linear guide way. High precision,high ragidity machine body maintains the processing stability during high rotation speed. Coupling,spindle bearing,spindle,ball screw,and other key parts are imported from Germany,Japan and Taiwan top brands to ensure high quality and stability.  Specification:CNC Engraving Machine CM-650B

Modelmm		CM-650B
Table size	mm	600×500
Travel (Longitude)	mm	600
Travel (Crossward)	mm	500
Travel (Vertical)	mm	250
Width of gantry	mm	760
Spindle (Taper)		ER25/BT30*
Spindle (Rotation speed)	rpm	500-24000/18000*
Spindle (Motor)	kw	5.5
X/Y/Z axis servo motor	kw	0.85
Distance between tool head and table	mm	50-300
X/Y/Z axis feed speed	m/min	8
X/Y/Z axis rapid feed	m/min	10/24*
Dimension(L*W*H)	mm	1930×2040×2340
Net weight	kg	2800
Max.load of table	kg	300

Accessories 1.Standard accessories Taiwan LNC control system Taiwan Three axes ball screw Imported linear way Japan three axes servo motor Working light Coolant pump  Spindle coolant 2.Optional Accessories Tool setting gauge SYNTEC 11MA /21MA Controller Graphite machine After-sales Service Warranty is a year. Parts are free of charge to be offered during this period. Oversea service need to charged extra in and out of warranty.
