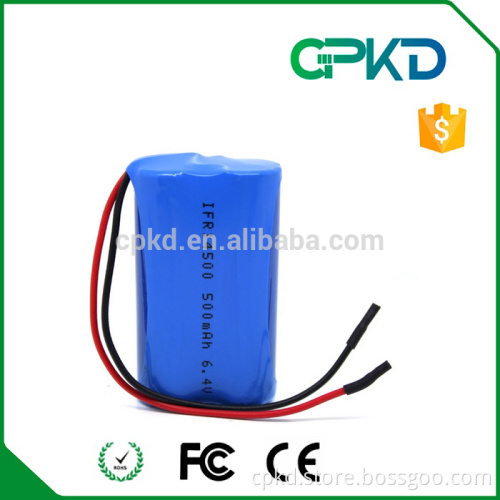

Solar Light replacement battery 6.4V 500mah LiFePo4 battery pack

Contact:Tobey Skype:ctechsales09   Product Description Model Name: IFR14500 6.4V 500mah lithium battery pack

NO.	Item		General Parameter				Remark
1	Model		IFR14500
2	Casing material for single cell		steel case for single cells
3	Standard capacity(0.2C5A)		500mAh
4	Mininum Capacity(0.2C5A)		480mAh				Nominal capacity greater than 95%;
5	Rated voltage		6.4V				Work voltage
6	Max.Charge voltage		7.3V
7	Cut-off voltage		4.0V
8	Standard charge and discharge current		0.2C5A
9	charging Time		6.0hours				0.2C5A
10	Max constant discharge current		3C5A
11	length		28.0±0.5mm				2 Paralleled 1 Serial
12	width		14.0±0.5mm
13	height		50±0.5mm
14	Weight(Approx,including case)		About 36g
15	Impedance(Max, at 1000Hz.)		≤ 45mΩ
16	Charge method (CC/CV)	Standard	CC	0.2C		7.3V cut off
			CV	7.3V		0.02C cut off
		Rapid	CC	1C		7.3V cut off
			CV	7.3V		0.02C cut off
17	Operate temperature		Charge		0°C~45°C
			discharge		-20°C~60°C
			storage		-20°C~45°C


Other size and capacity also available,welcome to customize your battery.

Packaging & Shipping   Packaging:1pcs in a box,100pcs in a carton   Shipping: FedEx/DHL/UPS/TNT, Door-to-Door. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving. Customers specifying freight forwarders or negotiable shipping methods. Delivery Time: 1-2 working days for samples; 15-20 days for batch goods. Our Services   Offer quality product with competitive price. Comprehensive service for order following and tracking.  Shipping cost inquiry to your destination port. OEM and customize design for your potential marketing product.  Bare battery cell,Battery Processing supported. Company Information   Shenzhen CPKD Technology Co., Ltd. (CPKD), is a hi-tech OEM&ODM assembly manufacturer of Lithium Ion, Lithium Polymer and Lithium button cell, CPKD is the manufacturer in China which main concentrate on Lithium cells in series and parallels application. OEM/ODM Service is welcome.
